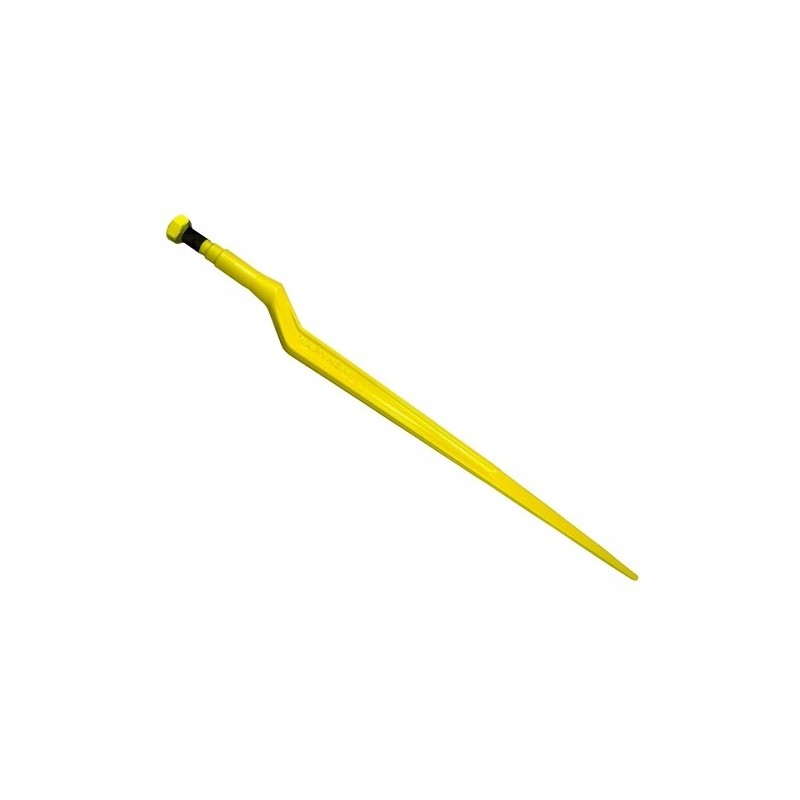

Loader bent l 880mm Warynski

Universal loader tine Z L- 880 mm replacement 5193-FT88N Tur WARYŃSKIIndex W9132-880W

- Works with the W-579880 sleeve.

TUR type front loader tine, Telescopic Loader.

The tine was designed taking into account stress simulation using the finite element method.

It was made by forging from spring steel.

The steel we use is also used in the production of springs and spiral, disc and ring springs for motor vehicles under the highest loads.

Works perfectly with the Waryński Sleeve

Remember to replace the sleeve when replacing a tooth if it is worn out

Advantages of Waryński loader teeth

- high hardness,

- increased elasticity,

- increased durability,

- easy installation,

- are subjected to static and dynamic field tests.

Waryński tooth quality control

Each production batch of Waryński loader teeth undergoes hardness tests from the tooth core to its surface. The proper distribution of hardness in the cross-section of the tooth and the appropriately selected material guarantee its durability and strength at the highest level.

Length: 898 mm,

Diameter at the root: 37 mm,

Thread: M22 x 1.5,

Shape: Bent,

Mounting angle : 17°
