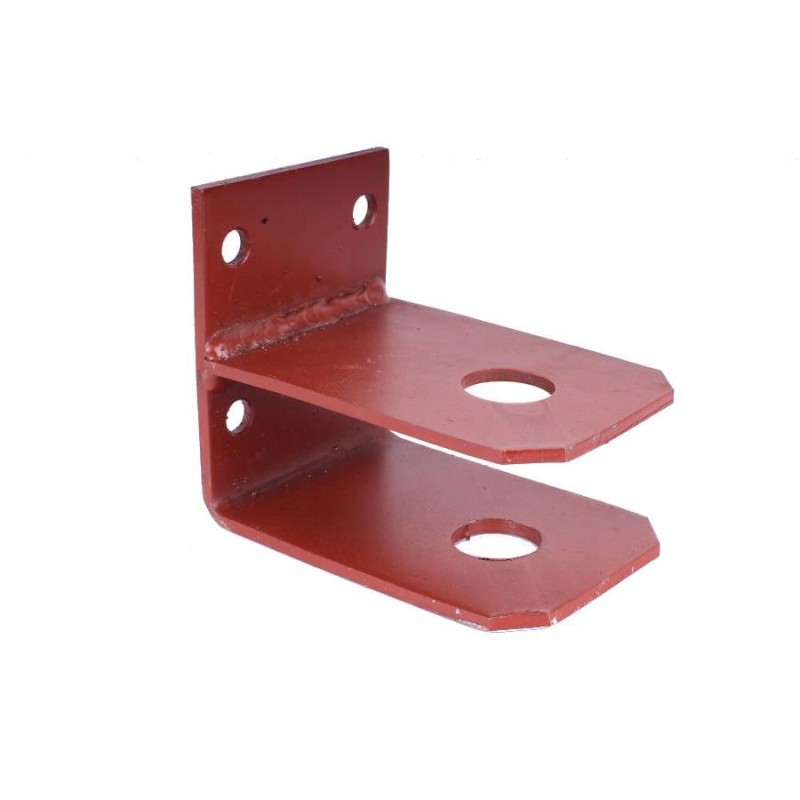

Front hook, welded hitch Ursus C-330 C330 Welded front hook, hitch
Application: Ursus C-330
Ref. no.: 4227226/1
Dimensions:
Sheet thickness: 5mm Width: 100mm
Total length: 150mm
Pin hole: 32mm
Distance to the center of the pin hole from the mounting wall: 90mm Clearance between sheets: 50mm Mounting holes: 12mm
Horizontal hole spacing: 70mm
Vertical hole spacing: 65mm
Total height of the mounting wall: 125mm FADREX number: 00462
Manufacturer code: 42272261
FADREX number: 00462
