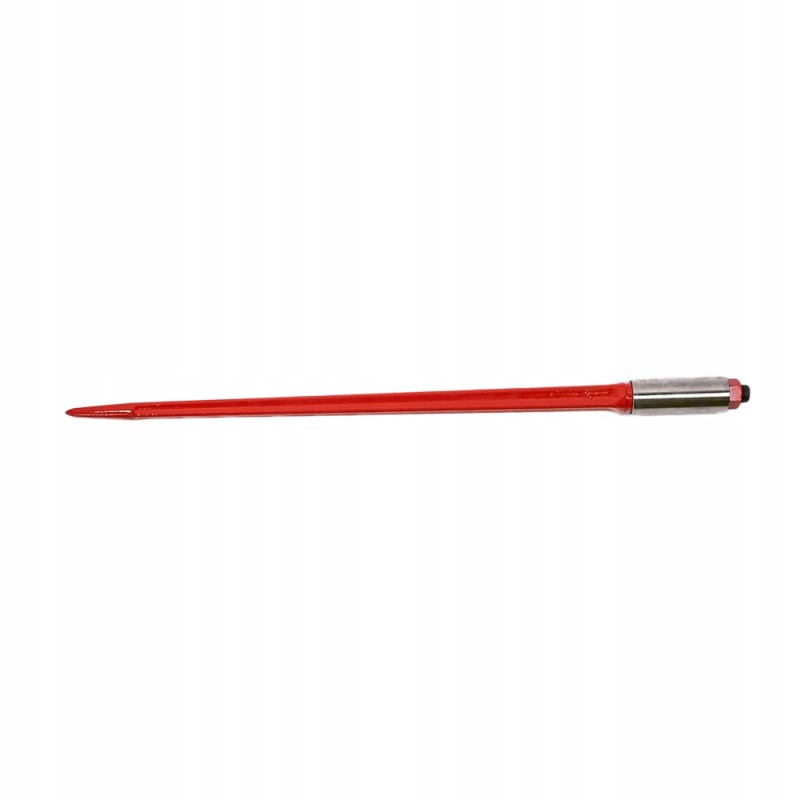

Tooth finger for front loader 810 mm bushing

Finger tooth for front loader 810 mm + sleeve SKU: CZR01294

Technical data:

Total length: 810 mm

Diameter at the base: 36 mm

Thread: M22x1.5

Coating: Powder

Color: Red

Nut included: Yes

Sleeve included: Yes

Total length of the sleeve: 112 mm

Sleeve diameter: 42 mm

Output hole: Ø 32

Input hole: Ø 38

EXPARTO forged teeth - an excellent choice for TUR front loaders and telescopic loaders. Why?

Exparto forged teeth are obtained by die forging, just like pistons in the combustion engines of the best sports cars.

Excellent quality, they are distinguished by hardness and flexibility, which guarantees many years of trouble-free operation. The desired flexibility can only be achieved through detailed supervision of the execution and supervision of the heat treatment process. We check the hardening level in several places of each finger. Additionally, measurements of each batch ensure that the EXPARTO teeth fit perfectly to the sleeves welded into the loader equipment. The thread is self-locking, which means that it does not unscrew from the nut, so there are no destructive play.

Exparto is one of the few suppliers that performs metallographic inspection after the tooth heat treatment process. The point is to demonstrate that the optimal hardening temperature has been applied. If the temperature is too high, even though the hardness meets the requirements, the coarse-grained structure will cause cracking and premature tooth wear. We control the chemical composition at the very beginning of the production process, because even the best technological process will not ensure 100% quality if the quality of the input material is low

The precision of the protective paint coating allows you to maintain the aesthetic appearance of the loader tines for many years.

Exparto forged teeth are successfully used in grapple buckets, silage grabs, pallet sliding forks with pins, Q model manure and straw forks, bale forks, and silage cutters.

Exparto forged teeth are compatible with accessories for front loaders and telescopic loaders manufactured by: Agromasz, Hydramet, Inter Tech, Metal-Fach, Metaltechnik, MX, New Holland, Quick, Stoll, Volant, Zetor and many others.

High-quality EXPARTO bushing, ideal for use in loaders, front-mounted tractors, crocodiles and forks. It can be used in agriculture, horticulture, forestry, construction and industry in general.

The sleeve is designed and manufactured specifically for specific teeth 680mm, 810mm, 1100mm, thanks to which the tooth is perfectly seated and its entire surface adheres to the inner walls of the sleeve.
