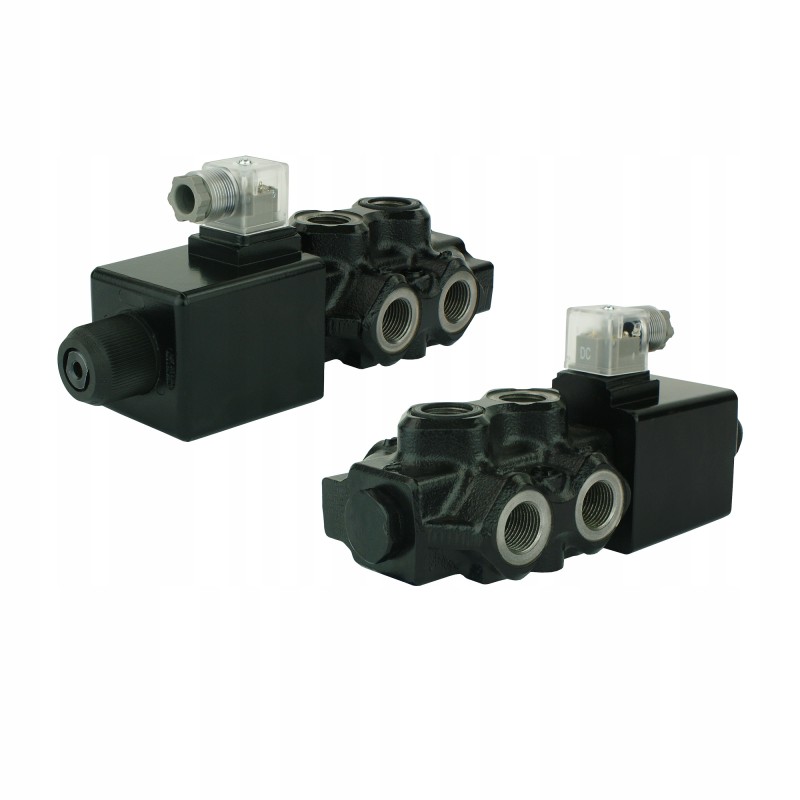

Solenoid valve 6 2 90l min 12v 1 2 walvoil

DIVIDER (SOLENOID VALVE) 6/2 12V 1/2' WITH PHOSPHORATED ANTICORROSION COATING

Production:

Original product of the WALVOIL brand, symbol: 1.23.00.008

Application :

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The divider is adapted to various types of machines such as: agricultural machines, tractors, sprayers , tourers, cyclopes, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

Technical data:

Electrical plug included.

Recommended oil flow in the system: 0 - 90 l/min.

Example control: two independently operating double-acting cylinders controlled from one section in the hydraulic distributor.

Principle of operation:

The solenoid valve, using an electric impulse (12V), allows you to switch control between two independently operating double-acting actuators. This is an ideal solution when we have a hydraulic distributor in which all available sections are already used, and suddenly there is a need to control a new, additional actuator.

In the TUR loader, this device allows control from one section in the bucket distributor and a bale grabber or crocodile. Switching between controls is done using a button. It can be mounted near the distributor or directly on the control element, e.g. on a lever or on a joystick.

The solenoid valve allows you to control two actuators, but it does not allow you to control them simultaneously. The work should be performed on the first actuator, and then we switch to controlling the second actuator.

The photo shows an example of the use of a 6/2 solenoid valve:

Control:

Two-position slider (1 - 2), on a spring, i.e. it returns to the neutral position on its own after cutting off the power supply. While the slider is in the neutral position (1), it is possible to control actuator no. 1.

Principle of slider operation:

Position 1 neutral (current supply to the coil is cut off) possibility of controlling the actuator No. 1.

Working position 2 (power supply to the coil), ability to control actuator No. 2.

On the left side, hydraulic diagram of the distributor:

Current:

Power supply direct current (DC) 12V

Connection:

Power supply from the distributor section (A, B): BSP 1/2'' internal thread

Outlet to actuator no. 1 (C, D): BSP 1/2'' internal thread

Output to actuator no. 2 (E, F): BSP 1/2'' internal thread

Pressure range:

Maximum supply pressure: 200Bar

Maximum return pressure: 50Bar

Maximum pressure on sections: 200Bar

Oil types recommended by AGRICOLA:

Thinner high-quality oil: LOTOS AGROL BOXOL 26

Thicker high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46

Recommended oil temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Recommended filtration oil at the level of 10 - 15 µ
