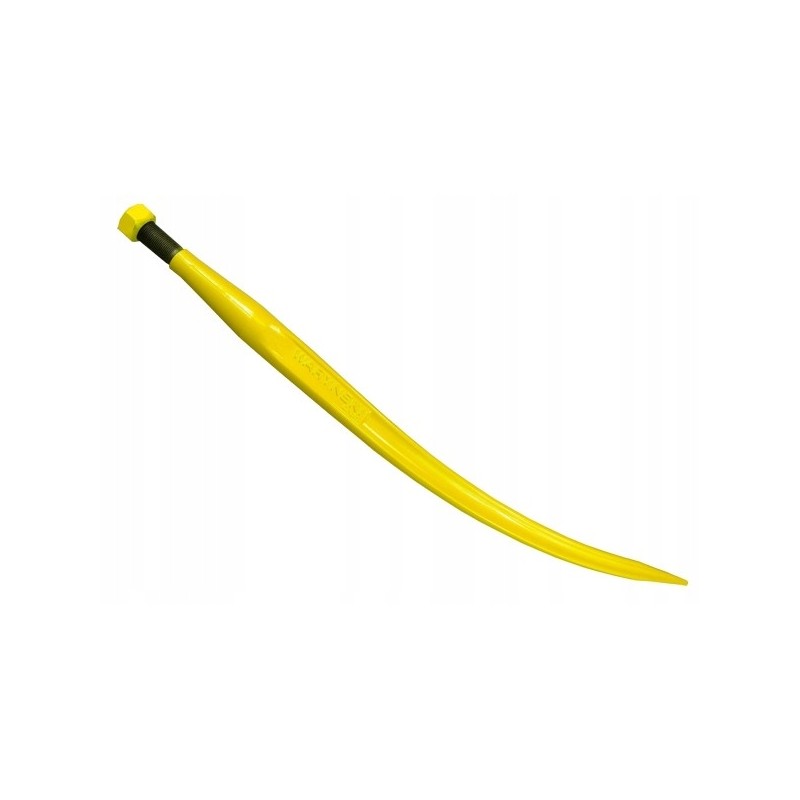

Loader hook, bent, closing l 680mm crocodile

Loader tine bent closing L- 680 mm gripper (crocodile) 5193-FT89K Tur WARYŃSKILoader tine bent closing L- 680 mm crocodile gripper 5193-FT89K Tur WARYŃSKI The tines were designed taking into account stress simulation using the finite element method. It was made of spring steel forging. The steel we use is also used in the production of springs and spiral, disc and ring springs for motor vehicles under the highest loads. Works perfectly with Tuleja Waryński. When replacing a tooth, remember to replace the sleeve if it is worn.

Teeth for Waryński front loaders are made by forging from spring steel, used in the production of springs and spiral springs for highly loaded motor and rail vehicles. The Waryński loader's teeth are powder coated, which provides increased corrosion resistance. Our products are subjected to field tests with static and dynamic tests. The monitored heat treatment process improves the abrasion resistance and elasticity of forged Waryński loader teeth

Dimensions: *Thread: M22 x 1.5

* Length: 665 mm

*Diameter at the root: 37 mm *Shape: Bent,

*Mounting angle: 10°

* Application: TUR front loaders, Telescopic Loader * Product code: W9132-680K

-️ Comparison number: Works with the W-579800 sleeve 5192FT68N KK221194 43006802200

* Producer: Waryński
