Distributor on 2p40 joy 0p balls 2m cable badestnost

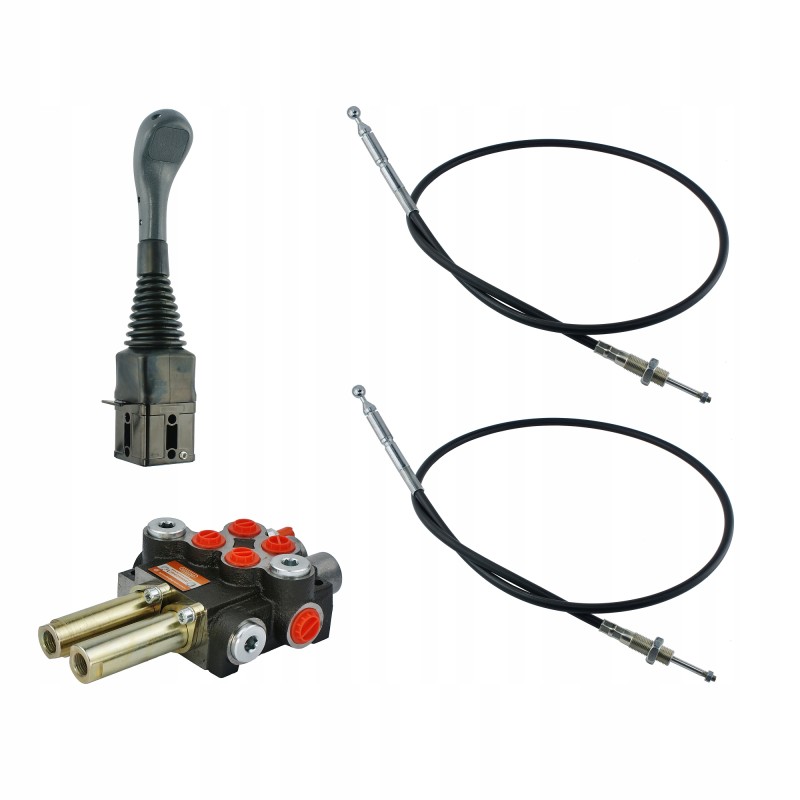

2-SECTION HYDRAULIC SET 40L/minSet contents:

ball joystick without button

two 2m long lines (can be changed to 1m, 1.5m, 2.5m, 3m)< p>

2-section hydraulic distributor 40L/min

Production:

Original product of the Badestnost brand, symbol: 1.25.00.001

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The set is adapted to various types of machines such as: agricultural machines, tractors, sprayers, aurochs, cyclops , HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices where the hydraulic pump capacity does not exceed 40L/min.

Application in TUR front loaders:

Proven in many tractor models, including: Ursus C-330, C-355, C-360, C-385, 912, 914, 1224, 2812, 3512 Zetor 5211, 7211, 5245, 7245, 8011 MF 235 , 255 and others

The set controls two sections in the TUR front loader, i.e. lifting the frame and the shovel inclination.

Example application:

Controlling two independently operating actuators (photo).

General information:

Joystick control has many advantages that make work faster, more pleasant and safe. Joystick means, above all, more comfortable, convenient and precise machine control. Installing the joystick inside the cabin and throwing the distributor outside keeps the cabin clean and free of oil leaks.

Joystick:

Designed to mechanically control two sections in the distributor. No button or electrical output. Structural elements made of aluminum inside, housing made of strong plastic. European production of NIMCO.

Links:

Standard length of the cables: 2m (this is what we send unless the customer specifies otherwise). Possibility to change the length of the cables to 1m, 1.5m, 2.5m, 3m without changing the price of the set.

Threads on the distributor side: cable body M16x1.5, cable tie M6x1

From joystick side, ball diameter 14mm

Polish production, produced for Agricola Hydraulic Components.

TWO-SEction HYDRAULIC DISTRIBUTOR: Maximum flow up to 40L/min. Control of single-sided and double-sided cylinders. Recommended to control the distributor using cables and a joystick.

Control:

Both sliders have three positions (1 - 0 - 2), spring-loaded, i.e. they return to the neutral position on their own if the cable is loose.

Neutral position 0 (the cable is loose), the cylinder piston rod is standing - the oil goes to the overflow.

Working position 1 (the cable pulls the slider), the cylinder piston rod extends.

Working position 2 (the cable pushes the slider), the cylinder piston rod retracts.

Connection:

Internal threads in the body: supply: 1/2'', return: 1/2'' , sections: 3/8''

Cable connections:

Tube internal thread: M16x1.5

Slider tip internal thread: M6x1.5

Pressure range:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on sections: 300Bar

The overflow valve is factory set to 175Bar

Possibility of self-adjustment, full turn change by 30Bar

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Recommended hydraulic oil based on mineral oil, e.g. HL 32 or HL 46
