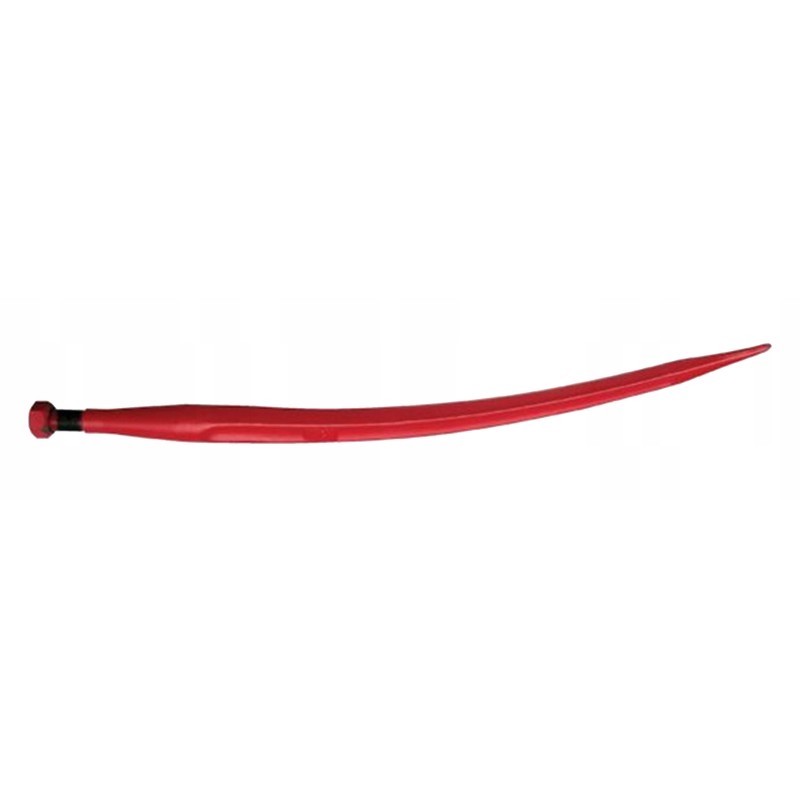

Upper crocodile tooth 680mm m22x1 5 closing

Lower crocodile tooth 800mm M22x1.5

Lower loader tooth 880 mm M22x1.5

The loader's teeth are subjected to heat treatment technological processes, ensuring optimal hardness and material structure. They are made of high-quality spring steel, which ensures their high load resistance. They are produced by forging and subjected to various types of strength tests. Additionally, constant control in the production process ensures that the teeth retain their repeatability and have constant properties.

Color: red Shape: rounded Conical nut included Thread type - Metric

Thread pitch - 1.50 mm

Blade profile - Pointed

Mounting type - Nut

A Length - 680 mm

C2 Diameter max. - 37 mm

B Thread diameter - 22 mm

C1 Seating diameter min. - 24 mm

Seat diameter max. - 36 mm

C3 Cone length - 110 mm
