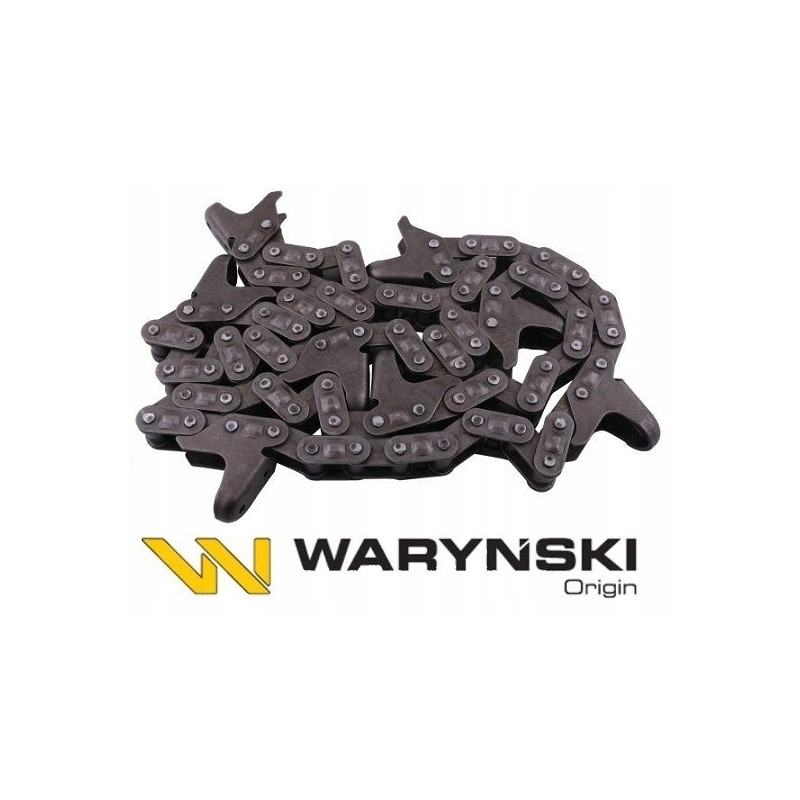

Corn intake chain 55vdf1x54a cnh

Cob peeler chain for corn attachment by WARYŃSKI55VDF1 x 54A CPEF(CP)

CNH application

Number of links: 54 pcs.

Number of plates: 27 pcs.

Pitch: 41.4 mm,

Internal width: 22.5 mm

Max. . roll fi: 17.9 mm

Max. fi pins: 9 mm

Inner plate thickness: 3 mm

Plate width: 23 mm

External plate thickness: 3 mm

Max. width: 39.7 mm

Height of the driver from the chain axis: 58. mm

Max. width connecting link: 39.7 mm

Hole spacing: 22.1 mm

Hole diameter: 8.1 mm

Increased abrasion resistance -

hardening makes the chains stronger and have a longer service life. This process takes place under special supervision, thanks to which ideal parameters of the furnace and cooling liquid are ensured. Tensile strength - this is due to the fit of the pins with the plates, with an accuracy of up to a micron. Thanks to this, the chain works efficiently - the links do not break out and there is no slack.

Increased resistance to breaking -

All pins are forged with appropriate, repeatable force. If the chain is too tight, it may damage other components of the chain, while if it is too weak, it may break the chain. Reproducible crimping force thanks to the automated process guarantees that each chain link is identical and perfect. Perfect cooperation with the wheels.
