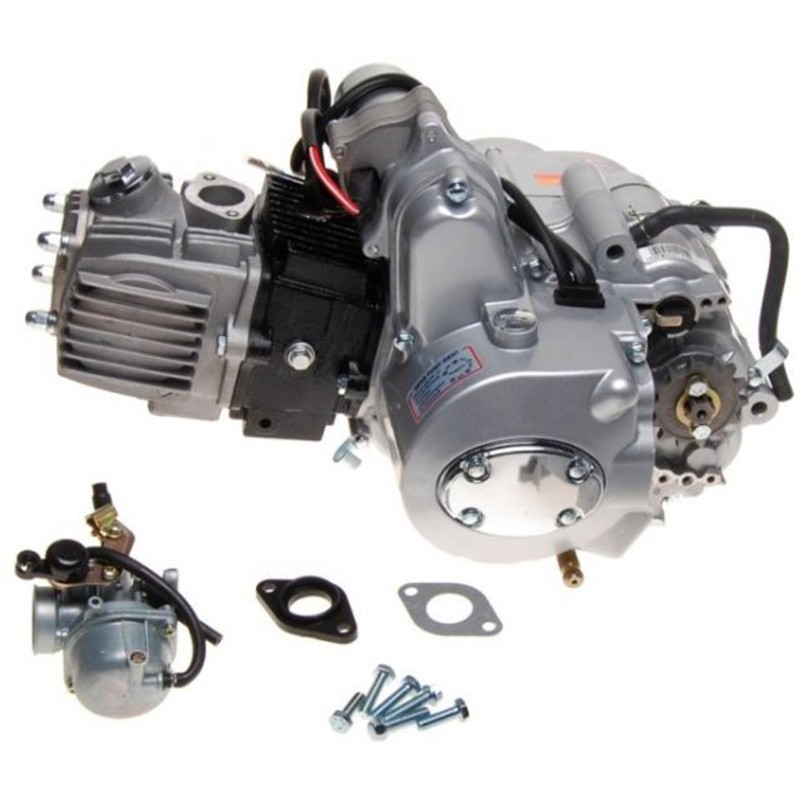

Quad atv 110cm3 automatic engine 3 reverse gear

INDEX: ZQ9996

DESCRIPTION: ENGINE SET. ATV 110 3 SPEED + REVERSE SEMI-AUTOMATIC. 4-STROKE ENGINE, 1 CYLINDER, AIR COOLED, HORIZONTAL, MODEL 153 FMH. CYLINDER DIAMETER x PISTON Stroke 52.4x49.5 mm. STROKE CAPACITY 106.7 cm3. COMPRESSION RATIO 9.0: 1. MAXIMUM POWER 5.1 kW AT 8000±500 rpm. MAXIMUM TORQUE 7.2 Nm AT 5000ą500 rpm. IGNITION ADVANCE ANGLE 15º±2º BEFORE TDC. SAE 10W/40 API SF ENGINE OIL. INITIAL GEAR RATIO: 4.059 1st gear: 3.182 2nd gear: 1.765 3rd gear: 1.043 Reverse gear: 2.583. SPARK PLUG A7TC/A7RTC. CONTACTLESS IGNITION, CDI, MULTI-DISC CLUTCH, WET. OIL PAN CAPACITY 0.8 l. FOOT/ELECTRIC START. THE SET CONSISTS OF CARBURETOR, INDUCTION PIPE, OUTPUT SPROCKET COVER AND ENGINE

ATTENTION!!! THERE IS A WRITTEN 12-MONTH WARRANTY FOR THE ENGINE, WHICH IS INCLUDED WITH THE KIT. AFTER READING THE COMPLAINT AND USE RULES, SEND THE SIGNED APPLICATION TO OUR COMPANY WITHIN 14 BUSINESS DAYS. ENGINES MUST BE INSTALLED IN AUTHORIZED MOTORCYCLE SERVICES. THE ENGINES ARE FILLED WITH MINERAL OIL DURING STARTING. FAILURE TO FOLLOW THE ABOVE RULES WILL RESULT IN THE LOSS OF THE MANUFACTURER'S WARRANTY

DIMENSIONS:

TOTAL LENGTH APPROXIMATELY 43cm

HEIGHT APPROXIMATELY 24 cm (FOR STARTER)

WIDTH 33 cm

LENGTH OF ENGINE MOUNTING ELEMENT 92mm

DIAMETER PER AXLE FOR INSTALLATION 10mm

DISTANCE FROM THE HOLES FIXING THE ENGINE TO THE FRAME APPROXIMATELY 160mm

WEIGHT APPROXIMATELY 21 kg

NOTES:

THE PRICE IS FOR 1 SET
