Wireless forklift kit 9 magnet

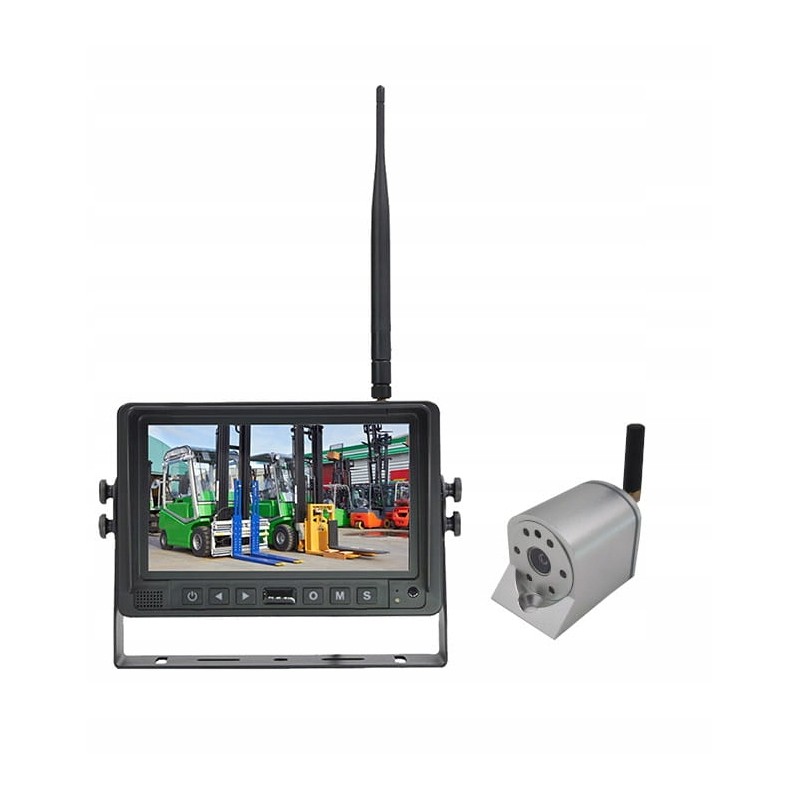

Wireless digital set with a magnetic camera + Monitor 9' 4ch 12V-55V with DVR recording function for a forklift

High-quality wireless set with long-range digital image transmission.

POSSIBILITY OF POWER SUPPLY WITH VOLTAGE from 10 V to 55 V

The device is designed to work in difficult conditions. Camera in an aluminum housing with a magnetic holder, dedicated to forklifts.

The set consists of a high-quality color camera in an aluminum housing integrated with a neodymium magnetic holder. The camera has 6 infrared diodes, so it works perfectly even in complete darkness. High-quality 1/3' AHD 720P CCD sensor ensures faithful color reproduction and high camera sensitivity.

Camera parameters:

Sensor: 1/3' CMOS

TV system: PAL NTSC

Effective pixels: 1280x720

Resolution: 1Mpx

Built-in IR diodes: 8 pcs

Day and night work: YES

Sensitivity: 0.1 Lux (day) 0 Lux (with IR LEDs)

Exposure: 510:1

Current consumption: 400mA (12V)

Power supply: from 12 to 32V

Connectors: DC, antenna

Operating frequency: 2400 -2483.5 MHz

Range in open areas: 120 meters

Compression: H.264

Transmission speed: 12Mbps

Lens f=3.6mm

Viewing angle 100°

Dimensions: 35 x 40 x 70 mm

Operating temperature: -20°C to +60°C

Digital color monitor with a reinforced construction from the Heavy Duty series with a built-in DVR image recorder. The screen with an image diagonal of 9' and a resolution of 1024 x 3(RGB) x 600 works even in very difficult conditions. The sun visor ensures good vision in unfavorable lighting conditions in the cabin. The monitor is designed to support 4 digital wireless cameras. Markers can be displayed on the image from the rear camera to help determine the distance to an obstacle. Automatically dims or brightens the image depending on the lighting in the cabin. The anti-reflective screen coating ensures good vision even on very bright and sunny days.

The set includes a remote control that supports all monitor functions.

Monitor parameters:

Image diagonal: 9'

Resolution: 1024 x 3 (RGB) x 600

Contrast 800:1

Brightness 450 cd/m²

Viewing angle U:80 / D:85, R/L: 85

Format 16:9

Channels 4 channels

Operating frequency 2412 - 2467 Mhz

Reception sensitivity -85 dBm

H.264 compression

DSSS modulation

Delay 200 ms

TF Card Max. 128G

PAL / NTSC format

Input voltage DC 10-55V

Current consumption Max. 10W

Operating temperature -20~+70ºC,RH90%

Storage temperature -30~+80ºC,RH90%
