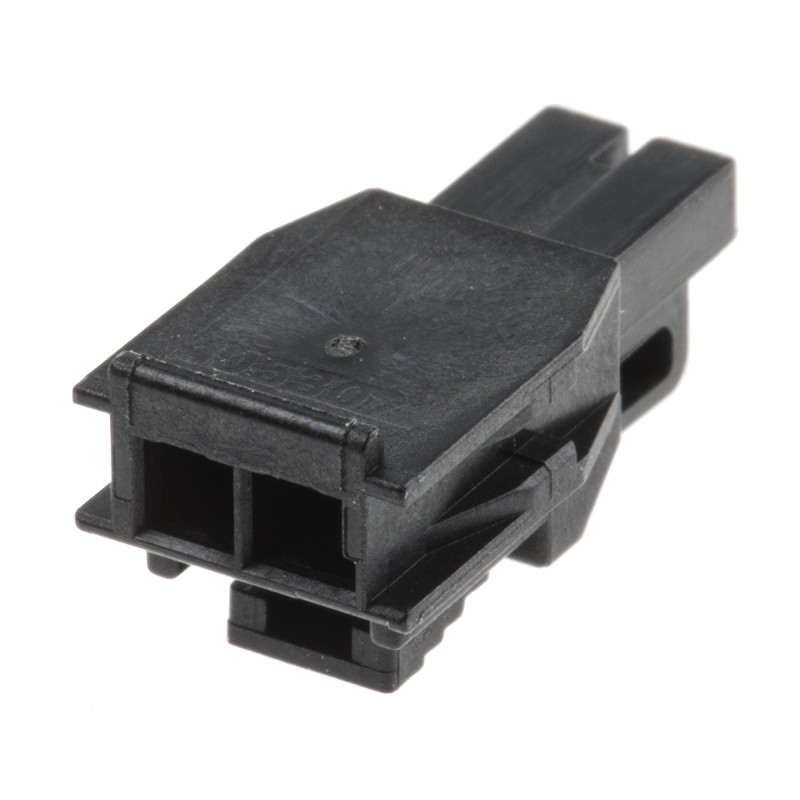

100 pcs - 105307-1202 Molex, Nano-Fit Female Connector Housing, 2.5mm Pitch, 2 Way, 1 Row

Molex 2.5 mm Nano-Fit Wire to Board Crimp Receptacle HousingsNano-Fit Wire to Board power connector crimp housings with a 2.5 mm pitch designed to provide full contact isolation. The compact package and tight pitch of these receptacles combined with optimum current density offer increased design flexibility for engineers in a wide range of applications. These Nano-Fit crimp housings are designed to provide full electrical isolation between the crimp terminals and to prevent arcing. Full isolation also prevents damage to the contacts during handling and mating and reduces the risk of shorting due to debris. These Nano-Fit crimp housings feature positive locking latches with an anti-snag design which prevents accidental disengagement and protects against damage caused by wire snags. The positive locking feature of these Nano-Fit power connector housings also prevents accidental mismating caused by shock, vibration or excessive cable strain. An audible click is produced to confirm mating completion. Tactile feedback is also provided when mis-mating is attempted. Polarization and keying aid accurate mating and prevent misalignment therefore reducing the errors that can be caused due to improper installation.These Nano-Fit crimp housings are designed to be used with TPA (Terminal Position Assurance) retainerswhich are available separately (see stock number 122-4858 typically)Crimp receptacles must be purchased separately (see stock numbers 122-4835 and 122-4836)Features and BenefitsCompact space saving sizeFull contact isolationPositive locking latches with anti-snag design for secure connectionAudible indication on mating completionPolarization and keying for accurate alignment Tactile feedback when mis-matingTPA (Terminal Position Assurance) retainers available separatelyApplicationsThe compact size and optimum current density of these Nano-Fit connectors makes them suitable for use in a wide range of applications across various industries:Consumer and home appliances, fridges, washers and dryersTelecommunications and Networking, servers and hubsAutomotive, interior appliances and lightingLighting, home lighting and ballastsAerospace and Defence, C4ISRIndustrial, Food and beverage and assembly line equipmentMedical, Patient care equipment and healthcare ITMolex Connector Housing, Wire-to-Board Type, 6.5A Maximum Current - 105307 Series - 105307-1202Want to secure a crimp terminal to your PCB? Get a firm grip with this connector housing from Molex. It has two highly conductive copper contacts so you can set up a reliable dual electrical connection to your board. The unit delivers full electrical isolation between the terminals to shield them from hazards during mating and operation. As it completely seals the connection points, this housing stops contaminants from getting in the way of your conductor's performance.Features & Benefits• Polarisation and keying features ensure correct alignment• Robust nylon housing delivers a high level of electrical insulation and protection against impacts• Does the job without a glitch in temperatures from -40°C to +105°CApplications• Automotive industry• Communications equipment• Aerospace engineering• Control panelsHow can I tell when the terminal is securely mated?The housing gives a reassuring click when the terminal is correctly and completely mated to the contact.Molex 2.5mm Nano-Fit Wire to Board Connector System
