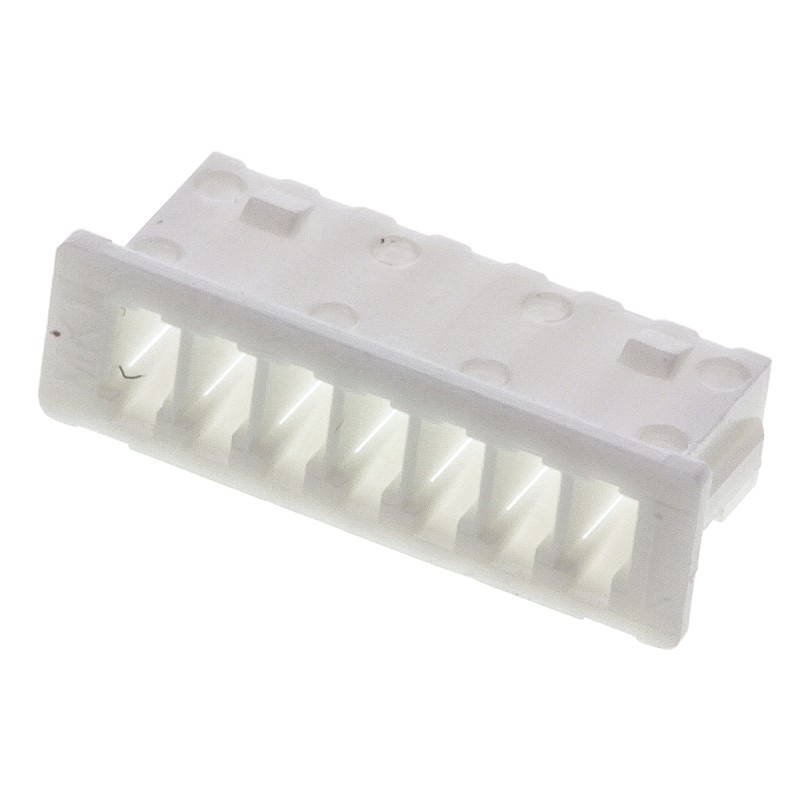

20 pcs - 51021-0700 Molex, PicoBlade Female Connector Housing, 1.25mm Pitch, 7 Way, 1 Row

Molex PicoBlade Series 51021 Connector HousingsThe PicoBlade 51021 Series can be used across a number of applications such as automotive, industrial, consumer, computing and medical. The PicoBlade connector system is offered in wire to board and wire to wire options and is ideal for saving PCB space.Features and Benefits• Single row, wire to wire and wire to board housings• Straight friction locks provide secure mating • Compact design• 1.25 mm pitch• 2 to 15 circuits• The crimp terminals are polarised to prevent incorrect insertionStandardsUL (E29179), CSA (LR19980)Molex Connector Housing, 1A Maximum Current Per Contact, 7 Contacts - PicoBlade Series - 51021-0700Make the most of limited PCB space with this female connector housing from Molex. Thanks to compact dimensions of 10.5 (L) x 3.2mm (W) and a 1.25mm pitch, it's a sure fit in tight spots. It accommodates up to seven wire-to-wire or wire-to-board circuits to streamline your setup. As it's made from robust polyester, this housing works without a hiccup in demanding conditions at temperatures between -40°C and +85°C.Features & Benefits• Polarised to prevent incorrect mating• Weighs 0.066g, so puts minimal strain on your PCB• Self-extinguishing for safety in the event of a fireApplications• Consumer electronics• Automation control panels• Domestic appliances• Medical devicesCan I use this connector housing in vibration-prone applications?Yes, it features a friction lock design for secure mating to help prevent accidental disconnection.How do I choose the right plug for this female connector housing?Simply choose a 7-way plug with a 1.25mm pitch (such as 143-037).ApprovalsUL (E29179), CSA (LR19980)1.25mm Wire to Board - Molex PicoBlade™
