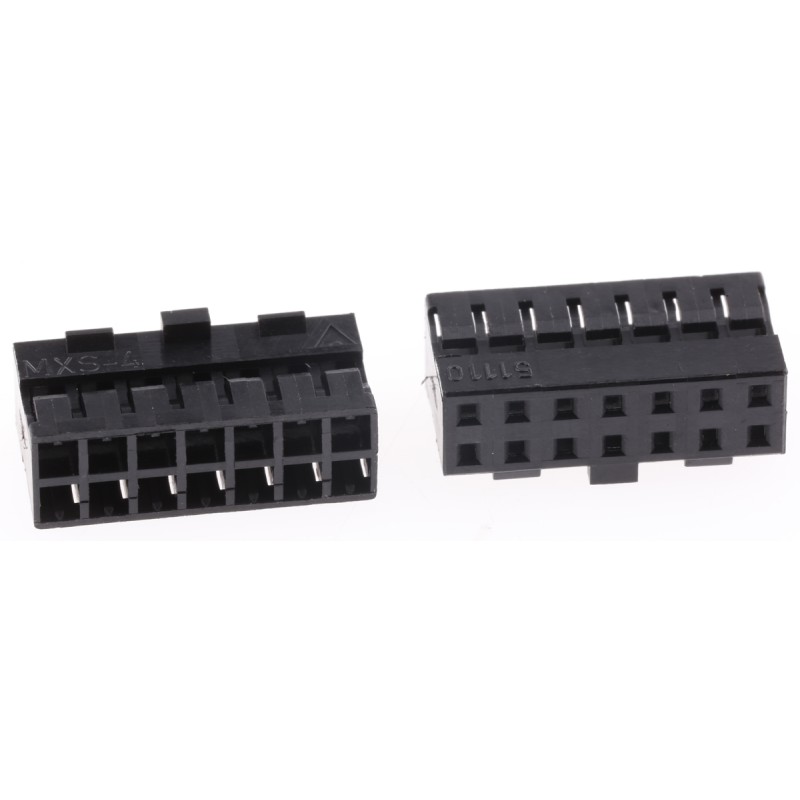

50 pcs - 51110-1451 Molex, Milli-Grid Female Connector Housing, 2mm Pitch, 14 Way, 2 Row

Molex 2.00 mm Milli-Grid Receptacle Crimp Housings - 51110 Series51110 series dual row Milli-Grid high density receptacle crimp housings with a 2.00 x 2.00 mm grid pattern for design flexibility. The shrouded design of these 2.00 mm Milli-Grid crimp housings protects the contacts from damage. These Milli-Grid connector housings are available with a centre polarization key that engages with a centre polarisation slot on the mating header to prevent mismating. Versions of these crimp housings are also available with a centre locking ramp and/or side latches for a secure mating connection to the headerPart numbers 51110-xx50 have a plain designPart numbers 51110-xx51 ((14-32 position) have a centre polarization key and side latchesPart numbers 51110-xx51 (8-12 position) have a centre polarization keyPart numbers 51110-xx60 have a centre locking rampFeatures and Benefits• High density 2.00 x 2.00 mm grid design• Shrouded for contact protection• Centre polarization key to prevent mismating• Centre locking ramps and side latches for secure mating connectionApplicationsThese Milli-Grid connectors are suitable for a wide range of wire to board signal applications. Typical applications include printers, fax machines and copiers, servers, routers and switches, automotive audio and GPS, security systems and alarms, set-top boxes and digital media playersMolex Connector Housing, PET Construction, -40°C to +105°C Operating Temperature - 51110 Series - 51110-1451Keep your crimp terminals securely linked to a PCB with this connector housing from Molex. It has two rows and 14 contacts, meaning you can make multiple connections from a unit that measures just 14.2mm in length. The contacts have a 2mm pitch, making this a space-saving pick. As it's made from PET, the unit provides insulation to shield you from electric shocks. This material is also heat-resistant, ensuring long-lasting performance in harsh environments.Features & Benefits• Polarised terminals ensure accurate connections and prevent damage to your ports• Straight body orientation for convenient mounting on a PCB• Light weight of 291g to minimise strain on your equipmentApplications• Household appliances• Medical devices• Military technologyWhat wire sizes can I use with this housing?This connector housing accommodates wire sizes ranging between 30 and 24AWG, making it a versatile option.Molex 2.0 mm Milli-Grid Interconnection SystemThe Milli-Grid connector system is a high density connector system based on a 2 x 2 mm grid pattern offering design flexibility for board to board and cable to board applications. The Milli-Grid family of connectors consists of shrouded and unshrouded headers, single and dual row receptacles, connector housings and crimp terminals
