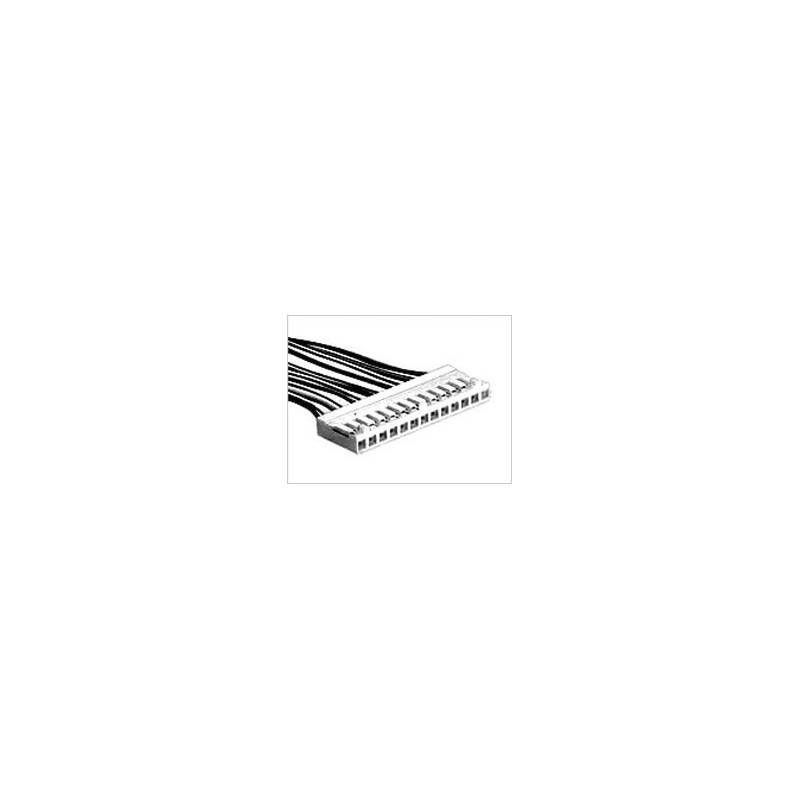

    50 pcs - DF1B-16DS-2.5RC Hirose, DF1B Male Connector Housing, 2.5mm Pitch, 16 Way, 2 Row
    • 50 pcs - DF1B-16DS-2.5RC Hirose, DF1B Male Connector Housing, 2.5mm Pitch, 16 Way, 2 Row

    50 pcs - DF1B-16DS-2.5RC Hirose, DF1B Male Connector Housing, 2.5mm Pitch, 16 Way, 2 Row

    50(electronicparts)1767472
    HIROSE
    50 pcs - DF1B-16DS-2.5RC Hirose, DF1B Male Connector Housing, 2.5mm Pitch, 16 Way, 2 Row
    £41.58
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    New Insulation Displacement and Crimping Ideas:This connector is a new type to insert the ID contacts in the case. Using this method, the following merits can be gained.By using the ID contact and crimping contact together, different current capacity cables can be mixed in one case.After connection, the contact can be replaced in excellent maintainability.Because the insulation displacement area is protected by the case, high reliability can be assured.
    Product Details
    HIROSE
    50(electronicparts)1767472
    DF1B-16DS-2.5RC
    10 Items

    Data sheet

    Manufacturer
    HIROSE
    Width
    11.5mm
    Length
    22.5mm
    A-Supplier
    Allparts-UK/15/R-10
    Series
    DF1B
    For Use With
    DF1B Series Connectors
    Mounting Type
    Cable Mount
    Housing Material
    Polyamide
    Number of Contacts
    16
    Gender
    Male
    Body Orientation
    Straight
