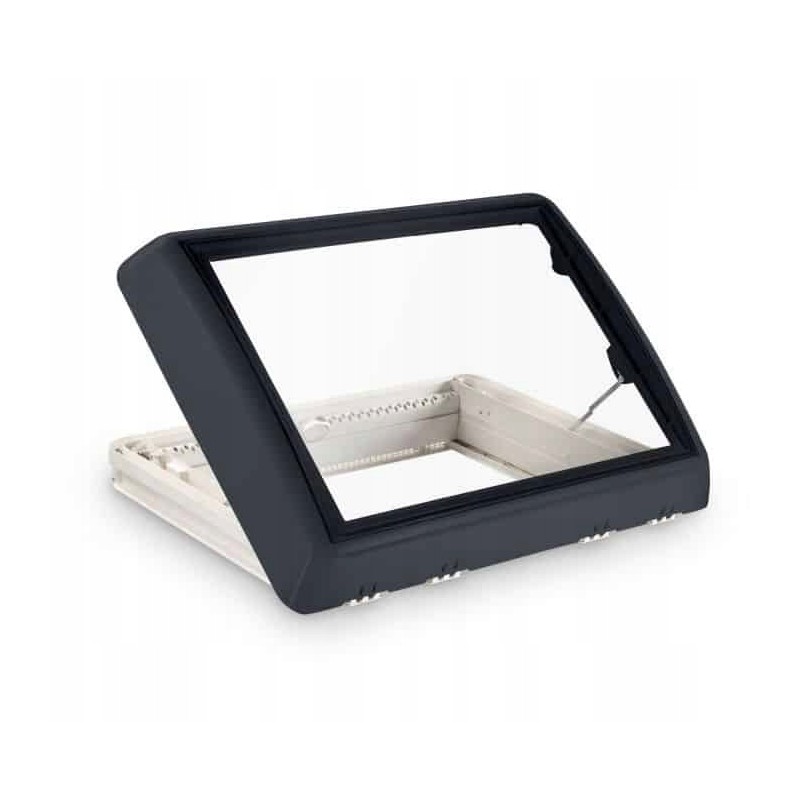

Dometic midi heki style gd 700x500 roof window

Midi Heki Style gray roof window with crank, forced ventilation, 700 x 500 mm by Dometic

Let fresh air and light into your vehicle!

This improved version of the Midi Heki Style roof light is safer, more aerodynamic, has improved appearance and maintenance.

Proven advantages, such as the blackout roller blind and mosquito net, as well as hassle-free cleaning, ensure comfort and convenience on the road

Thanks to the improved Midi design, Heki Style generates 20% less noise (3 dB).

ADVANTAGES:

Separately adjustable mosquito net and blackout blind

Well insulated dome with double acrylic glazing

20% improved aerodynamics

Hinges and lock integrated into the frame to improve safety and mechanical reliability

Variable opening positions

Forced or passive ventilation

Modern design for a stylish look inside and out

FEATURES:

Dimensions:

- depth 617 mm

- width 846 mm

Net weight 8.2 kg

Hole dimensions - width: 585 mm

Hole dimensions - height: 404 mm

Standard thickness of mounting material: 1 - min. 30 mm

Standard thickness of the mounting material: 1 - max. 34 mm

Possible material thickness: 1 - min. 25 mm

Possible material thickness: 1 - max. 29 mm

Cutout width: 500.00 mm

Max. opening angle 60.00 °

eMark certificates
