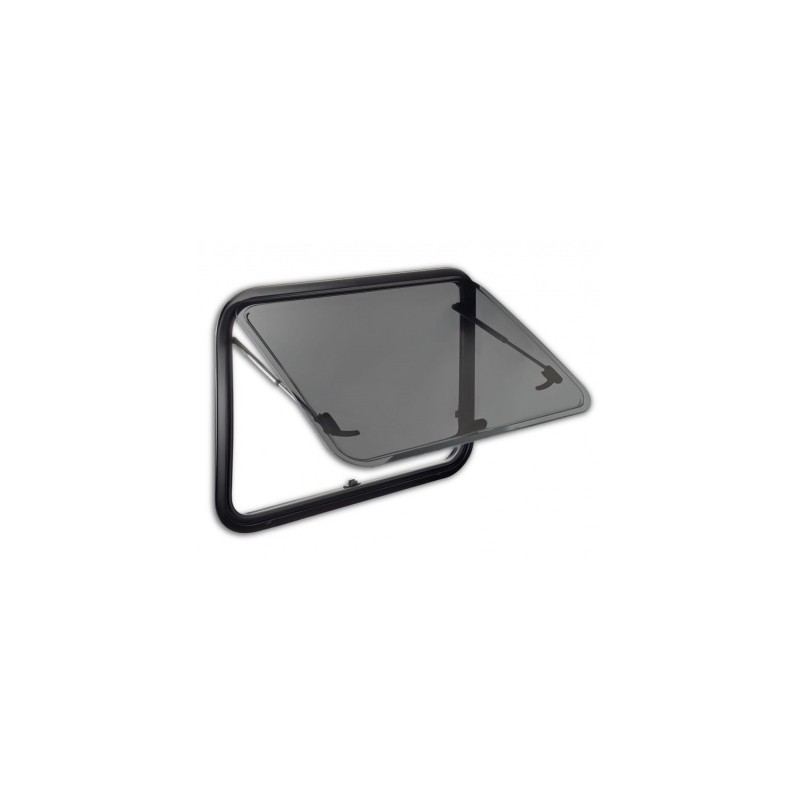

Hinged window with aluminum frame S7P 750x465mm

Tilting window with aluminum frame S7P 750x465mm - DometicThe slightly rounded surface of S7P windows (rounding radius 5000mm) makes them ideal for installation in vans.

Thanks to the use of powder-coated aluminum profiles, the window structure is very light, provides excellent thermal insulation and looks very aesthetic.

Thanks to its unique design, combined with a perfectly matched dimming system, the window with an aluminum frame is an excellent alternative to plastic windows.

Additional side windows at the rear are ideal for increasing the amount of natural light and creating a pleasant environment.

Particularly useful when converting a delivery van into a camper.

This elegantly designed window perfectly fulfills its function, ensuring effective insulation and safety at the same time.

NOTE: the window does not include an assembly kit, a blackout roller blind and a mosquito net!

ADVANTAGES:

multilock lock protects against intruders

coated powder-coated profiles provide excellent insulation

aluminum frame reduces weight

double, tinted acrylic coating

curvature radius 5000 mm

SPECIFICATIONS - TECHNICAL DATA:

factory dimensions: 750 x 465 mm

total dimensions: 778 x 493 mm

opening dimensions: 750 x 465 mm

glass dimensions: 700 x 415 mm

wall thickness: 22 - 43 mm

weight: 4.8 kg

color: black
