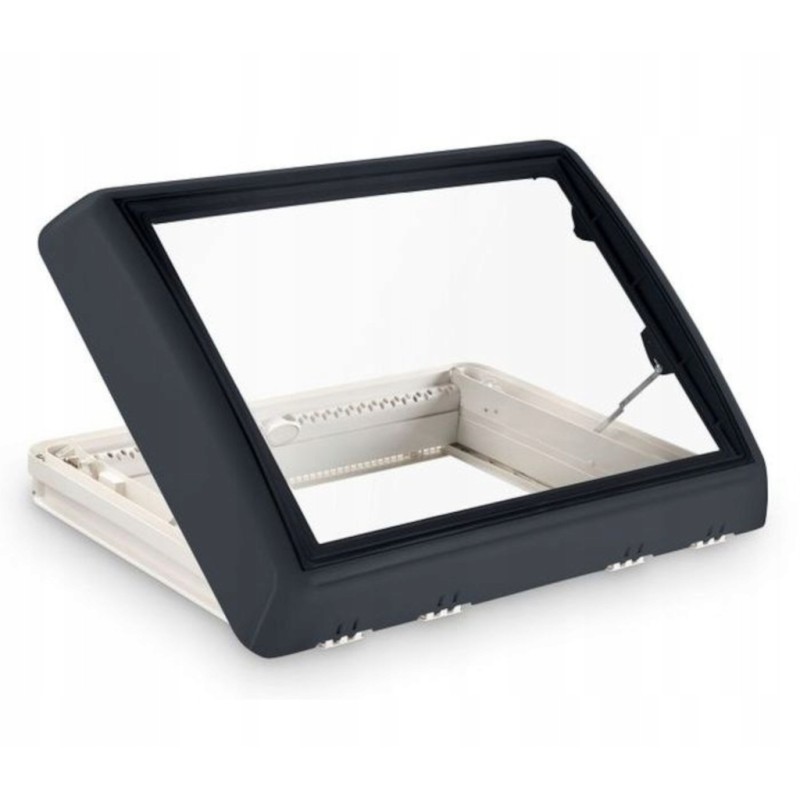

Midi Heki style roof window 700x500 with lever

Midi Heki Style gray roof window with lever, without forced ventilation, 700 x 500 mm by Dometic

Let fresh air and light into your vehicle!

This improved version of the Midi Heki Style roof light is safer, more aerodynamic, with improved appearance and maintenance.

Proven benefits such as the blackout roller blind and mosquito net, as well as hassle-free cleaning, ensure comfort and convenience on the road.

Thanks to the improved Midi design, Heki Style generates 20% less noise (3 dB). ADVANTAGES:

Separately adjustable mosquito net and blackout roller blind Well insulated dome with double acrylic glazing

Aerodynamics improved by 20%

The hinges and lock are integrated into the frame to improve safety and mechanical reliability

Three different opening positions: fully open, tilted and for use in unfavorable weather

Forced or passive ventilation

Modern design for a stylish look inside and out

PARAMETERS:

Dimensions:

depth 617 mm

width 846 mm

Net weight 8.2 kg

Hole dimensions:

width 585 mm

height 404 mm

Standard thickness of mounting material: 1 – min. 30mm

Standard thickness of mounting material: 1 – max. 34 mm

Possible material thickness: 1 – min. 25mm

Possible material thickness: 1 – max. 29 mm

Cutout width: 500.00 mm

Max. opening angle 45.00 °

Fixed positions 3

eMark Certificates
