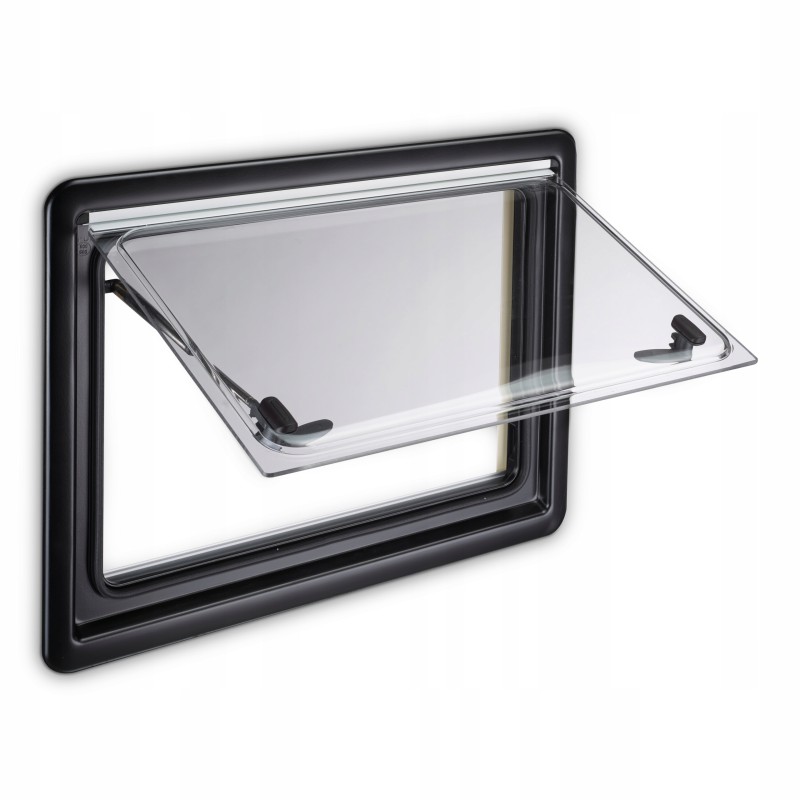

Hinged window for Dometic S4 350x500 camper

Dometic S4 350X500 tilting bathroom window. Tried and tested millions of times, S4 windows are an excellent choice for caravans and campers. The stop hinges ensure smooth opening to any position, and the safe closing system prevents the window from being opened from the outside. The excellent insulation achieved by the double acrylic window pane and its polyurethane frame meets construction standards in homes! The mosquito net and blackout blind can be clipped together to allow for simultaneous adjustment with one hand, making privacy easy to achieve.

BENEFITS:

Double acrylic glazing and polyurethane frame for excellent insulation

Built-in aluminum coated blackout blind

Practical mosquito net protects against insects

Quick and easy installation

Friction hinges allow opening to the selected position (top-mounted version)

SPECIFICATION:

Product dimensions - height, [mm] 531

Product dimensions - width, [mm ] 393

Ordered dimensions - width, [mm] 350

Ordered dimensions - height, [mm] 500

Net weight, [kg] 4.20

Opening dimensions - width, [mm] 254

Opening dimensions - height, [mm] 354

Standard thickness of mounting material 1 – min., [mm]26

Standard thickness of mounting material 1 – max., [mm] 26

Possible thickness of material 1 – min., [mm] 27

Possible thickness of material 1 – max., [mm] 41

Cutout height, [mm] 498

Cutout width, [mm] 343
