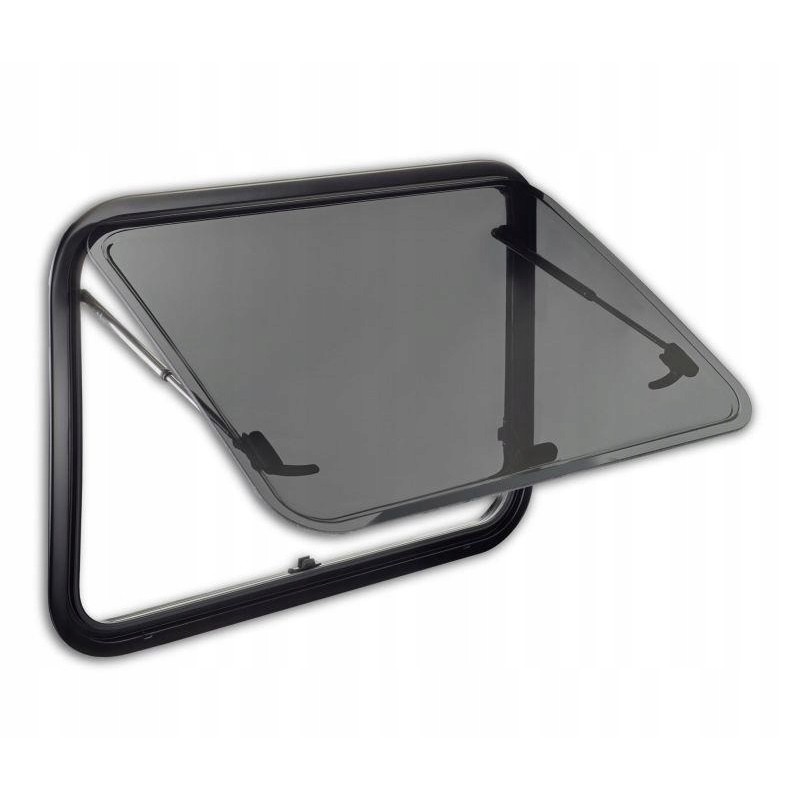

Hinged window with aluminum frame S7P 560x465mm

Tilt window with aluminum frame S7P 560x465mm - Dometic

A tilting window with an aluminum S7P frame from the renowned Dometic

brand The slightly rounded surface of S7P windows (rounding radius 5000mm) makes them ideal for installation in vans. Thanks to the use of powder-coated aluminum profiles, the window structure is very light, provides excellent thermal insulation and looks very aesthetic.

Thanks to its unique design, combined with a perfectly matched dimming system, a window with an aluminum frame is an excellent alternative to plastic windows.

Additional side windows at the rear are ideal for increasing natural light and creating a welcoming environment. Particularly useful when converting a delivery van into a camper.

This elegantly designed window perfectly fulfills its function, providing effective insulation and security at the same time.

NOTE: the window does not include the installation kit, blackout roller blind and mosquito net!

ADVANTAGES:

multilock lock protects against intruders

powder-coated profiles provide excellent insulation

aluminum frame reduces weight

double, tinted acrylic coating

radius of curvature 5000 m

SPECIFICATIONS:

factory dimensions: 560 x 465 mm

total dimensions: 588 x 493 mm

opening dimensions: 560 x 465 mm

glass dimensions: 510 x 415 mm

wall thickness: 22 - 43 mm

weight: 4.5 kg

color: black

DO9104116040
