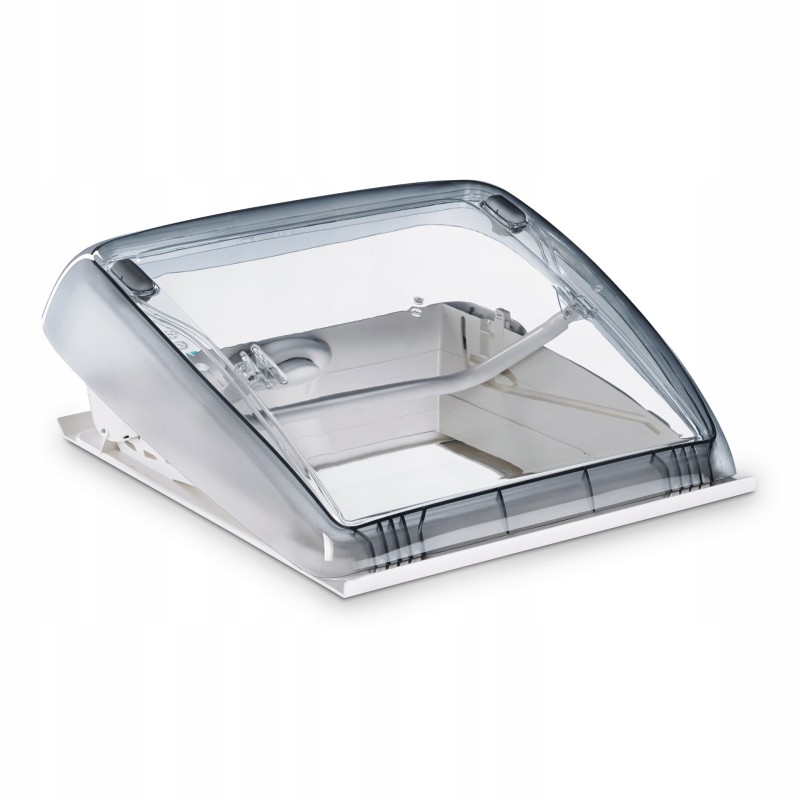

Mini Heki Style 43 60mm Dometic roof window

Dometic Mini Heki Style Powered Ventilation Roof Window for Roof Thickness 43-60mm

Any vehicle instantly looks more inviting when equipped with a compact sunroof that lets in just the right amount of light. Three different opening positions: fully open, tilted and used in unfavorable weather conditions.

Features:

Three different opening positions: fully open, tilted and used in unfavorable weather conditions

Dome with double acrylic glazing

Specially shaped, convex glass dome is aerodynamic

Opening via handle

Forced or passive ventilation

400 x 400 mm

Specifications:

General:

SKU number 9104116245

Mini Heki Style model

SKU number changed to 9620008612

Product description Forced roof window ventilation for a roof with a thickness of 43–60 mm

Dimensions:

Product dimensions – depth, [mm] 520

Product dimensions – width, [mm] 535

Ordered dimensions – width, [mm] 400

Ordered dimensions – height, [mm] 400

Net weight, [kg] 3.30

Hole dimensions - width, [mm] 384

Hole dimensions - height, [mm] 364

Standard thickness of mounting material 1 - min., [mm ] 43

Standard thickness of the mounting material 1 – max., [mm] 60

Possible material thickness 1 – min., [mm] 43

Possible material thickness 1 – max., [mm] 60

Ventilation hole, [cm<,sup>,2<,/sup>,] 70

Logistics:

EAN-13 4015704239218

Package dimensions - depth, [mm] 535

Package dimensions - height, [mm] 230

Package dimensions - width, [mm] 585

Package weight, [kg] 4.64
