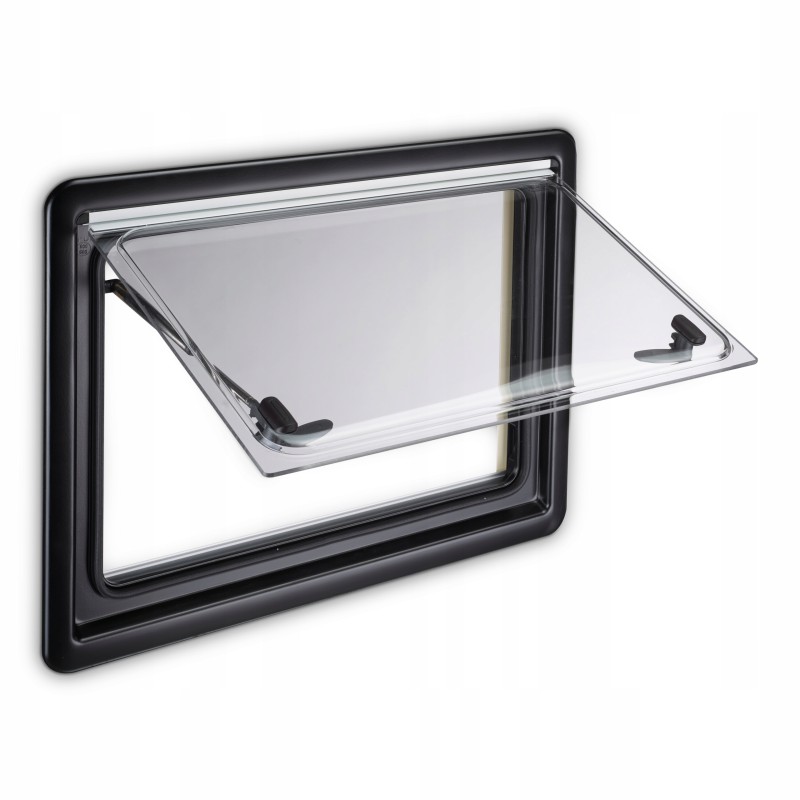

Hinged window for Dometic S4 900x550 camper

Dometic S4 900x550 bathroom tilt windowAre you looking for an attractive window of the highest quality to beautify the interior of your motorhome or trailer?

This model combines great craftsmanship, materials and ease of use.

Tested and tested millions of times, S4 windows are an excellent choice for your caravan and camper. The stop hinges ensure smooth opening to any position, and the safe closing system prevents the window from being opened from the outside. The excellent insulation achieved by the double acrylic window pane and its polyurethane frame meets construction standards in homes! The mosquito net and blackout blind can be clipped together to allow for simultaneous adjustment with one hand, making privacy easy to achieve.

Double acrylic glazing and polyurethane frame for excellent insulation

Built-in aluminum coated blackout blind

Practical mosquito net protects against insects

Quick and easy installation

Friction hinges allow opening to the selected position (top-mounted version)

SPECIFICATIONS:

Product dimensions - height, [mm]

581

Product dimensions - width, [mm]

948

Ordered dimensions – width, [mm]

900

Ordered dimensions – height, [mm]

550

Opening dimensions – width, [mm]

804

Opening dimensions – height, [mm]

404

Net weight, [ kg]

8.60

Standard thickness of mounting material 1 – min., [mm]

26

Standard thickness of mounting material 1 – max., [mm]

26

Possible thickness of material 1 – min., [mm]

27

Possible material thickness 1 – max., [mm]

41

Cutout height, [mm]

549

Cutout width, [mm]

902
