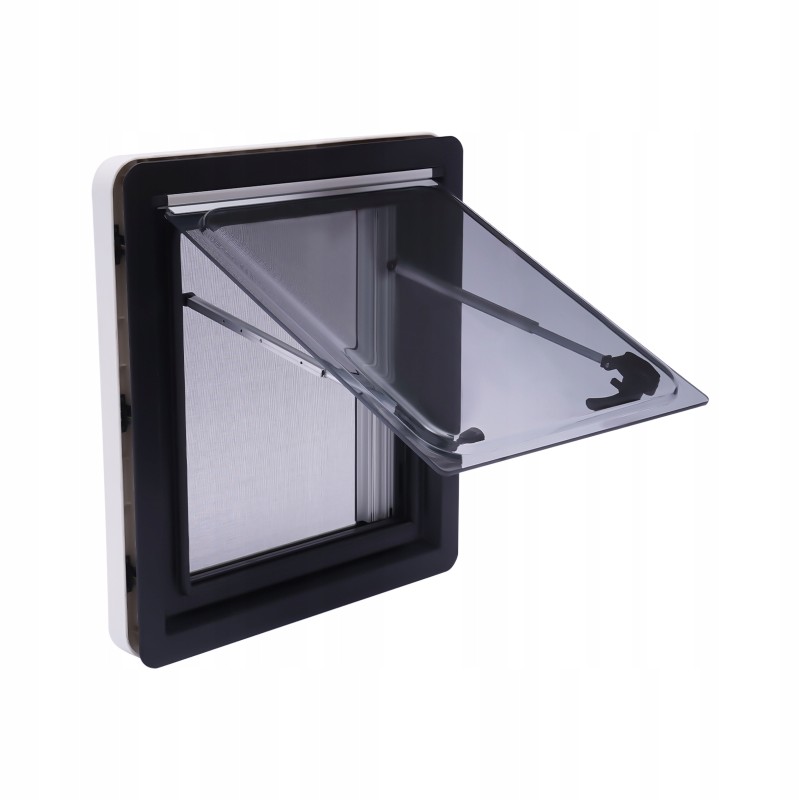

External ventilation window of the caravan

RV Caravan Top Outdoor Retractable Ventilation Window 45x50cm (W x H) NOTE: 1. Instruction is not included.

2.Professional installation is always recommended.

3. Please cut the top hinged window according to the actual size of the skylight.

4. Before installation, please measure the installation dimensions and installation radian repeatedly to ensure accurate installation.

Description: The MG16RW tilt window is a new design for both campers and mobile homes. Compared with other ordinary RV side windows, the latest installation method of our MG16RW window can halve the installation time to save both time and labor cost.

Feature: Simple and quick clamp installation.

The newly designed inner frame has no screw holes on the surface, making the window look better.

Aluminum outer frame and gray tinted double glazed acrylic glass with integrated roller blind and mosquito net which has the function of mosquito prevention and sunshade.

Opening and closing the windows can be done with one hand

The window glass can be pushed out to many positions, which is convenient to choose the appropriate opening angle according to the weather

The standard window is designed for walls with a thickness of 25-35mm.

Outer frame in black, inner frame in white.

Specifications: Model: MG16RW.

Frame color: black and white.

Type: foldable window with zipper, outer push window.

Wall thickness: 25-35 mm.

Cutting assembly dimensions: 450 x 500 mm.

Total dimensions: 480 x 530 mm.

Window opening dimensions: 328 x 378 mm.

Cutting radiation angle: 7 mm.

Maximum opening angle: 70°.

Application: It is perfect for use in caravan mobile home trailer etc

Package includes: 1 X RV Top Hinged Window
