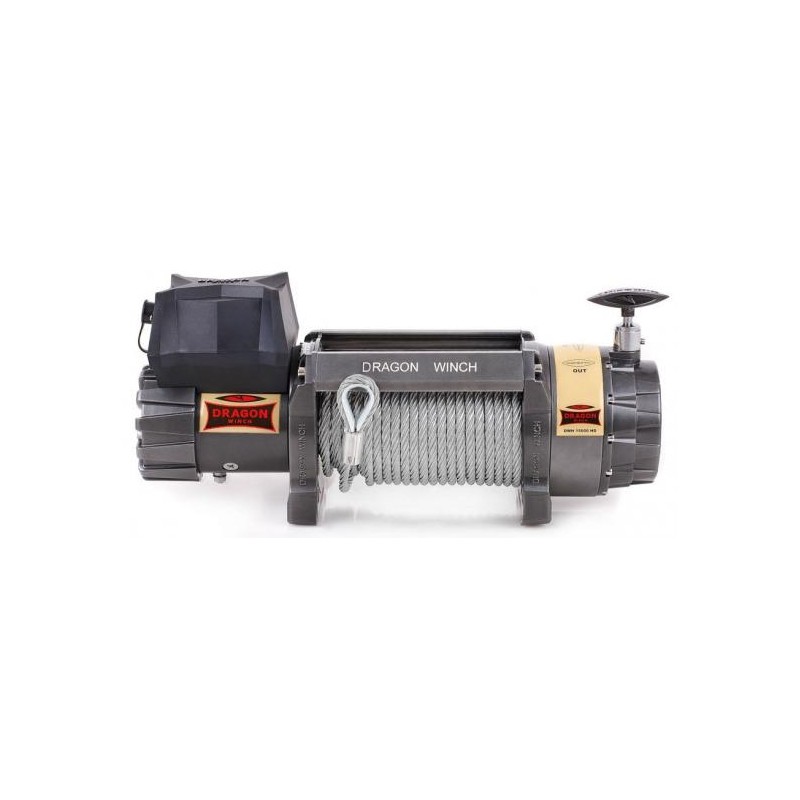

15000lb dragon winch dwh15000hd solid winch

15000LB DRAGON WINCH DWH15000HD WINCH SOLID Application:

Voltage:

12V

Power:

9 HP

Pulling capacity:

15,000 lb/ 6,803 kg

Gear:

three-stage planetary gear

Reduction:

295:1

Brake type:

dynamic

Length of steel rope:

28 m

Length of synthetic rope:

30 m

Winch dimensions (LxWxH):

578 mm x 175 mm x 260 mm

Gross weight of the set:

53 kg

Spacing of mounting screws:

254 mm x 114 mm

Rope winding speed (first layer of rope on the drum)

ROPE LOAD

kg

none

1814

3629

6803

ROPE SPEED

m/min

6.5

5.2

3.8

1.5

CURRENT CONSUMPTION 12V

amperes

65

177

353

483

Pulling force depending on the rope layer

ROPE LAYER

1

2

3

4

5

ROPE PULL

kg

6803

5372

4626

4014

3333

ROPE QUANTITY IN THE DRUM

m

5.2

11.0

18.3

26.6

28.0

DWH 15000 HD
