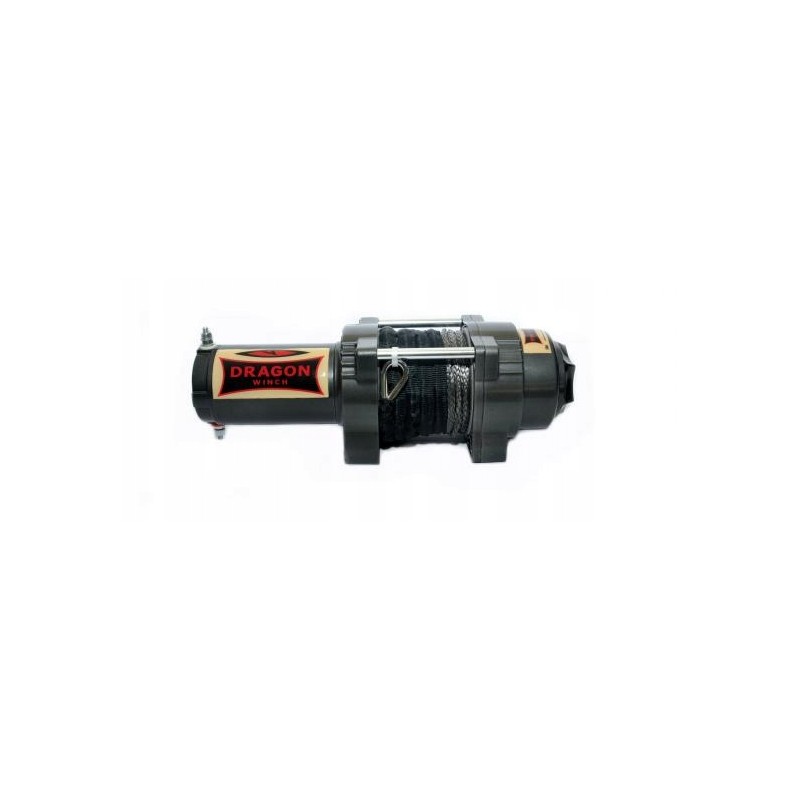

Dragon Winch DWH 3500 HD winch for free

Dragon Winch DWH 3500 HD S winch + FREE ATV COVERIndividual product attributes

Application:

Voltage:

12V

Power:

1.6 HP

Towing capacity:

3500 lb/ 1588 kg

Gear:

three-stage planetary gear

Reduction:

136 :1

Brake type:

automatic

Wire rope length:

15 m

Synthetic rope length:

15 m

Winch dimensions (LxWxH):

354 mm x 114 mm x115 mm

Gross set weight:

11 kg

Bolt spacing assembly:

124 mm x 76 mm

Rope winding speed (first rope layer on the drum)

ROPE LOAD

kg

none

453

907

1587

ROPE SPEED

m/min

5.4

4.8

4, 0

3.0

CURRENT CONSUMPTION 12V

amps

19

49

96

150

Pull force depending on the rope layer

ROPE LAYER

1

2

3

4

5

ROPE PULL

kg

1587

1254

1079

967

778

NUMBER OF ROPE IN THE DRUM

m

2.5

5.3

8.4

12.2

15.0

DWH 3500 HD-S

Certified goods and warranty!

High quality product ,Branded!
