DRAGON WINCH DWM 10000 HD 12V OFF-ROAD WINCHDWM 10000 HD WINCH

WITH STEEL LINE - DRAGON WINCH

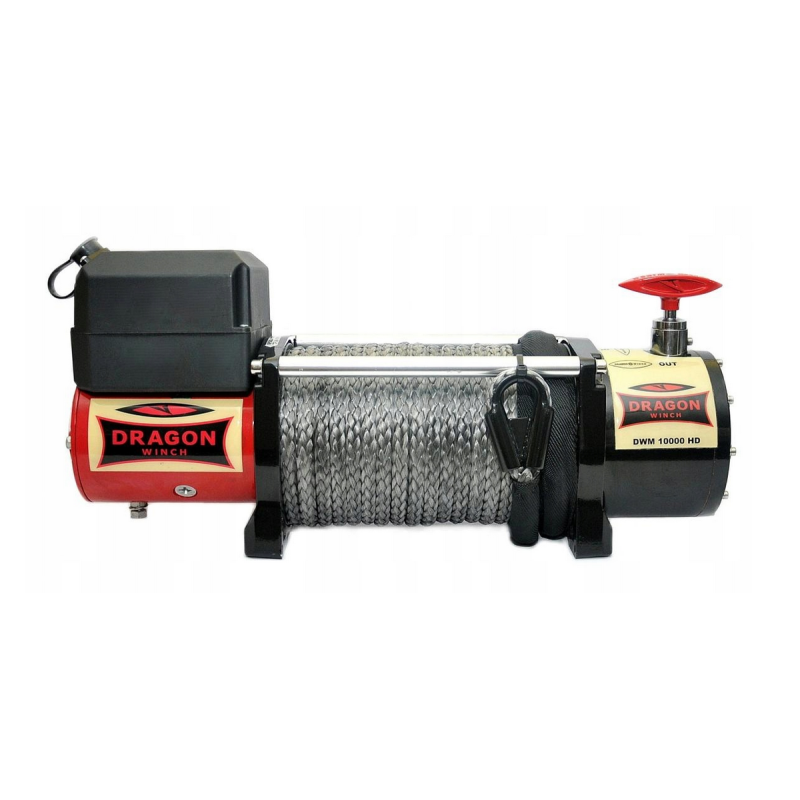

We offer you a modern Dragon Winch winch, model DWM 1000 HD, equipped with a steel rope, which is used in off-road vehicles and utility vehicles such as tow trucks. It was made of the highest quality materials and using innovative technologies. It is a reliable and efficient device that works even in the most extreme conditions.

WINCH FEATURES

Voltage: 12V

Pulling capacity: 4536 kg

Three-stage planetary transmission

Dust, water and pollution resistance system

Manufacturer: DRAGON WINCH

DOOR-2 warranty -DOOR

DRAGON WINCH

is currently the best valued POLISH manufacturer of winches with a global reach, thanks to extensive experience, the use of the highest quality materials, cutting-edge technologies and continuous development. They offer a wide variety of models for both small and large vehicles, including electric, hydraulic, industrial, portable and manual winches. The company boasts an ISO certificate and the Golden Consumer Laurel distinction

TECHNICAL SPECIFICATION

Application: commercial vehicles - tow trucks, off-road vehicles

Voltage: 12V

Power: 6.8 HP

Towing capacity: 10,000 lb/ 4,536 kg

Transmission: three-stage planetary gear

Reduction: 265:1

Brake type: dynamic

Wire rope length: 30 m

Winch dimensions (LxWxH): 537 mm x 159 mm x 246 mm

Gross set weight: 39 kg

Mounting screw spacing: 254 mm x 114 mm

Rope winding speed and power consumption (first layer of rope on the drum)

1. ROPE LOAD [kg]

2. ROPE SPEED [m/min]

3. CURRENT CONSUMPTION 12 V [A]

Pulling force depending on the rope layer

4. ROPE LAYERS

5. ROPE PULL [kg]

6. ROPE QUANTITY [m]

TECHNICAL DIAGRAM

SET CONTENTS

DWM 10000 HD winch

Roller guide

Cabling

Wired remote control

Wireless remote control

Hook and steel rope

Mounting screws

Plastic relay box with cables

DWM 10000 HD

Product with certificate and warranty!

High-quality product, Branded!
