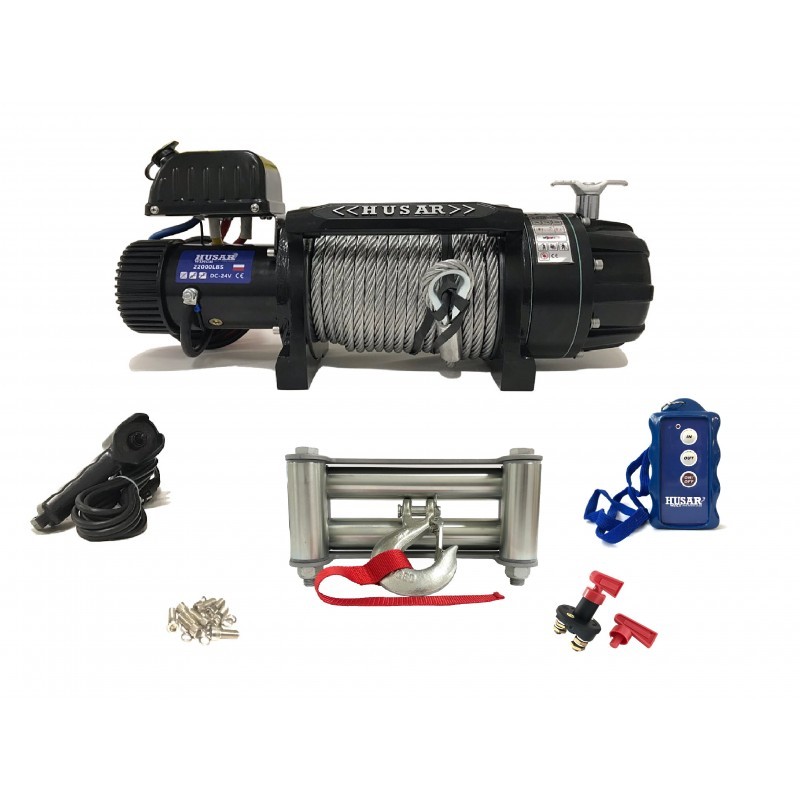

Winch winch steel rope 10t 30m 24v

ROPE WINCH - 9979 kg

Model: BST S 22000 lbs with steel rope

Power supply: 24V

HUSAR WINCH - is a Polish manufacturer specializing in the production of the highest quality winches and winches. Husar brand devices are tested on testing grounds for the automotive, industry and defense industry.

BST series winches They are ideal when you need to pull a vehicle or other object in difficult terrain. Perfectly fits all medium and large vehicles and tow trucks, but can also be used in forestry and households to remove tree trunks, logs, etc.

Product specifications:

Article condition: New

Catalog number: BST S 22000 lbs

Auction is for the device :

Load on a single rope: 9979 kg

Brake: abrasive

Control: wireless + wired remote control

Rope material: galvanized steel

Rope length: 30 m

Rope diameter: 12 mm

Gear: 3-stage planetary

Gear ratio: 370:1

Installation screw spacing: 254mm x 114.3mm I 254mm x 165.1 mm

Roller guide: 4 rollers

Supply voltage: 24V

24V motor power: 8.2 HP / 6.1 kW

Shipping weight: 73 kg

Dimensions

length 635 mm

width 214 mm

height 252 mm

The Husar winch is equipped with an abrasive brake. In the event of a power outage, it immediately immobilizes the winch, protecting the load from destruction. The friction brake significantly quiets the operation of the winch.

Remote control + remote control with a connection cable allows you to efficiently control the load.

A 30 m steel rope with a diameter of 12 mm has approximately three times the rope pull strength than the nominal load capacity of the device.
