Quad winch plug 2500lbs remote control 12v

Dragon Winch DWM 2500 STROWY MODELS MAVERICK series - power without breaking the bank Main features of the winch:

Pulling capacity 1,133 kg (2,500 lbs)

12V voltage

0.9 HP engine

10 m long rope

High-quality steel gear

Contactor type relay

Automatic brake

ISO 9001 certificate - confirmed highest quality of materials used and constantly improved processes for improving product quality.

Consumer Laurel - thanks to high recognition and high quality of products, winner of consumer awards.

CE Declaration of Conformity - our products meet the requirements of the so-called directives 'New Approach' of the European Union.

100% Dragon Winch - there is only one original. Certainty and reliability for many years, as well as technical support, competent advice and express service.

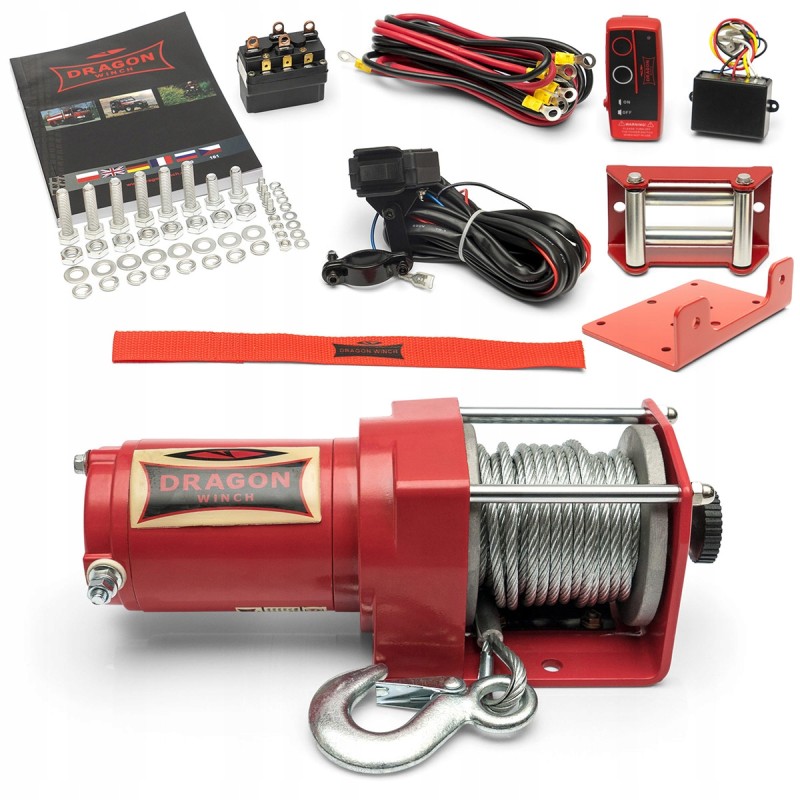

The set includes: Roller guide

Cables and screws

Rope with hook

120 A relay

Cable controller with handle

Wireless remote control with receiver

Universal mounting plate

Manual in Polish

Buy once and do it right - you can't afford cheaper substitutes. Experience the power of a dragon. What makes it stand out from the rest? For those who are looking for a strong winch without having to break the bank.

Its design allows for various mounting options, making it ideal for quads, plows, buggies.

A winch with a modern design appearance, proven performance and legendary reliability of Dragon Winch.

The new sealing system provides a high degree of resistance to water, dust and other contaminants.

Control is carried out independently using a cable remote control or a wireless remote control with a range of 30 meters.

Proven in all conditions Guarantee of quadruple protection against: water

mud

snow

sand

Wireless control as standardErgonomic wireless remote control with an increased range of up to 40 meters. Equipped with an on/off switch and a hole for hanging on a lanyard. Powered by one A23 battery. Additionally, the set includes a 'rocker' controller connected with cables. Mounted with a handle.

Gallery of the presented set: General technical specifications: Application: small and medium-sized quads, UTV, plow operation

Voltage 12 V

Power 0.9 HP

Pulling force 2,500 lb / 1,133 kg or 5,000 lb / 2,266 kg - using a block (option)

Planetary gear

Reduction 153: 1

Brake type: self-locking

Steel rope length 10 m

4-roller guide

Dimensions (L x W x H) 285 mm x 103 mm x 105 mm

Weight 6 kg

Performance: Rope winding speed (first layer of rope on the drum)

1. Rope load in kg

2. Rope speed m/min

3. Current consumption in A

Pulling force depending on the rope layer

4. Rope layer

5. Rope pull in kg

6. Number of rope on the drum in meters

Dimensions:
