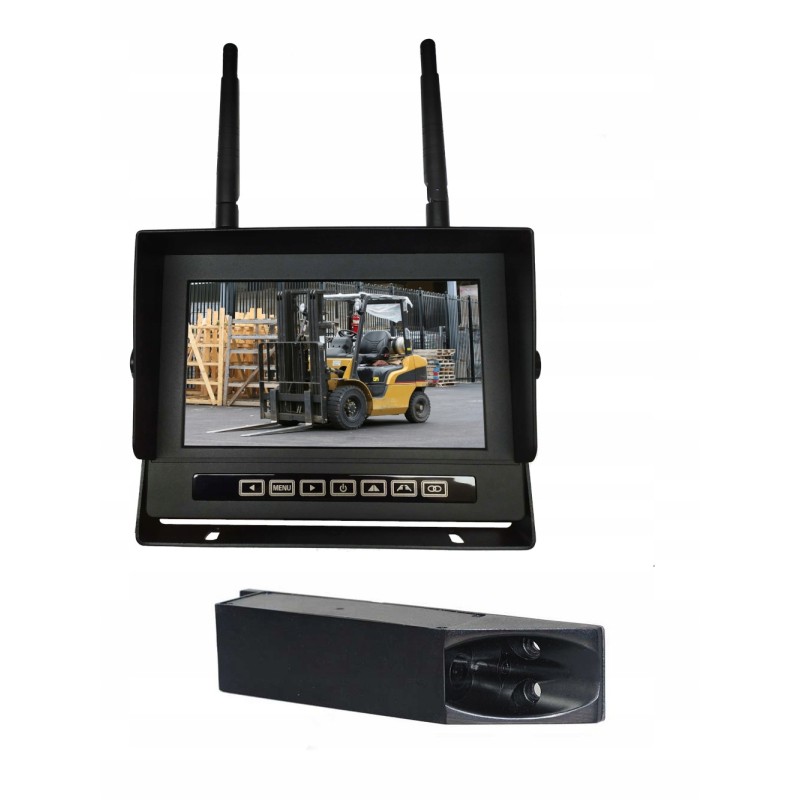

Waterproof wireless forklift kit

Waterproof wireless forklift setThe most important features:

AHD 1080P system

High image quality thanks to the use of an image sensor with a resolution of 1920x1080 pixels in the camera

Waterproof and dustproof monitor with touch buttons

Very convenient and quick magnetic mounting of the camera on the 'forks'

The camera is equipped with a battery that provides 6 hours of continuous operation when fully charged and a DC socket for powering and charging the camera (12-24V)

A laser pointer placed in the camera helps the operator precisely aim at the pallet

The monitor allows programming a maximum of 4 cameras

The monitor in a Heavy Duty metal housing and a screen with a 7" image diagonal works well even in very difficult conditions. The sun visor ensures good vision in unfavorable lighting conditions in the cabin.

The monitor is designed to support from 1 to 4 AHD 1080P wireless cameras.

Waterproof and dustproof - allows you to move the vehicle with an open cabin outdoors even in rain and dust without the risk of damaging the device .

The monitor can generate markers in the image to help determine the distance to the target.

Monitor parameters:

Image diagonal: 7'

Resolution: 1024 RGB x 600

Format 16:9

Support for 4 AHD 1080P cameras

Operation frequency 2400 –2483.5MHz

H.264 decompression

Reception sensitivity: -89dB@4MHz

PAL/NTSC AHD format

Metal housing

IP 68 tightness

Input voltage DC 9 - 30V

Operating temperature -20 ~ +70ºC

Camera parameters:

Sensor: CMOS 1/2.7'

TV system: PAL/NTSC AHD

Resolution: 1080P

Horizontal viewing angle over 40°

Built-in laser pointer: 1 pc

Day and night operation: YES

Transmission frequency 2400-2483.5 MHz

Transmission band 8 MHZ BER<,1E-3

Working time on the built-in battery: 6 hours (when fully charged)

Automatic energy saving

Possibility to operate on wired power

Power supply: from 12 to 24V

Housing: Black aluminum alloy IP69K

Range in an open area: 50 meters

Dimensions: 87 x 75 x 77 mm

+70°C
