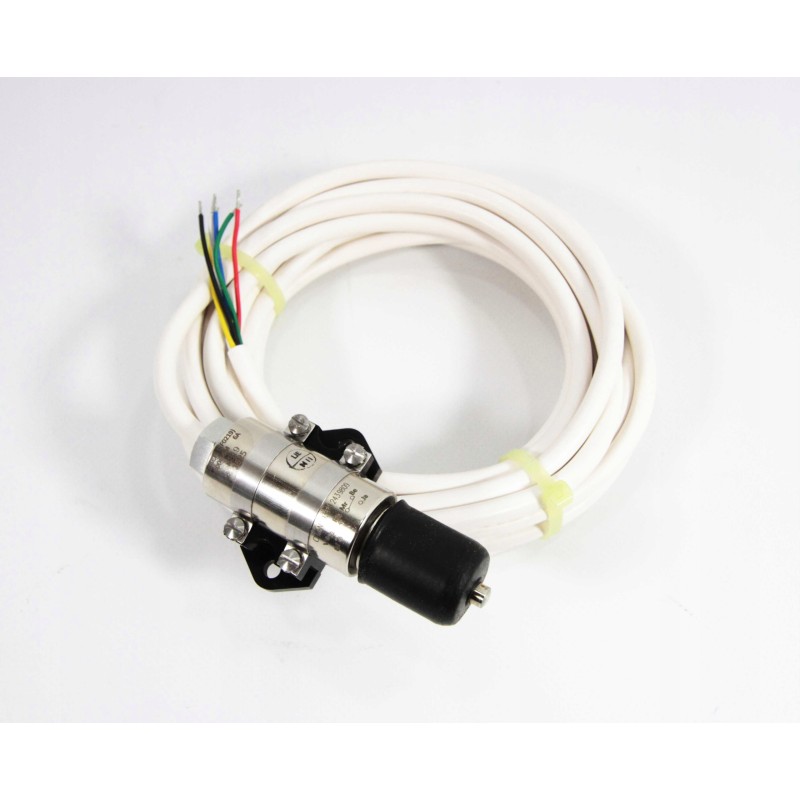

Waterproof-aviation-switch-limit switch

We offer you a specialized limit switch from LEACH, switch type 20006-6M.

It is a specialized limit switch type, intended for use in aviation and military equipment.

The subassembly was made in such a way that after proper installation it is completely waterproof.

This was achieved in this way, the pressure element is located in a special expanding bellows - syphon.

There is an additional rubber protector on it - the protector has been removed for one of the photos.

Therefore, the pressure on the tip only causes deformation of the bellows.

The cable is led out through a special gland , the component housing is soldered.

The micro-switch has two pairs of switched contacts with a load capacity of 6A

Nominal operating voltage 28V DC or 115V AC.

Operating stroke of the switch approx. 5 mm

Head diameter 6mm

Diameter of the entire switch 26 mm

Total length 87 mm

The switch is mounted on an aluminum base for screwing

If necessary, it can be dismantled.

The length of the connection cable is approx. 2 m

The component is perfect for operation in difficult conditions and in the presence of climatic exposures.

It has been designed for many years failure-free operation.

The offered component is brand new, in the original packaging

We provide a start-up warranty.
