Gas heating boiler combi 4 cp plus truma

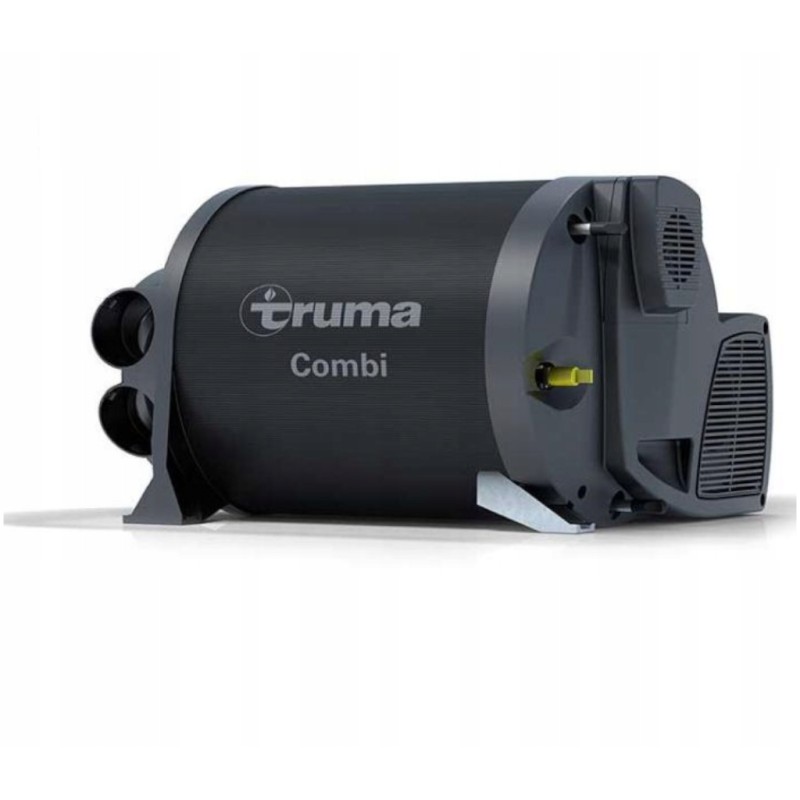

Gas heating boiler Combi 4 CP Plus by Truma

Compact, efficient, reliable - this is the recipe for the success of Truma Combi

heating This system successfully combines the functions of heating and hot water preparation in one device and has been the most popular heating system in campers for many years. The heating offers significantly greater operating comfort and numerous new functions for an individually pleasant room climate SPECIFICATIONS - TECHNICAL DATA:

power supply: liquid gas (propane/butane)

working pressure: 30 mbar

capacity: 10 l

max water pressure: 2.8 bar

heating time (from 15°C to 60°C): boiler/heating and boiler* approx. 20 min/approx. 80 min

rated thermal power 2000/4000 W

fuel consumption 160-320 g/h

air flow rate max. 287 m3/h

current consumption (at 12 V): Heating and boiler operating mode 0.2 A temporarily up to max. 5.6 A (average approx. 1.1 A)

current consumption (at 12 V): Boiler heating max. 0.4 A

quiescent current approx. 0.001 A

length: 510 mm

width: 450 mm

height: 300 mm

weight (without water) 14.0 kg

color: black
