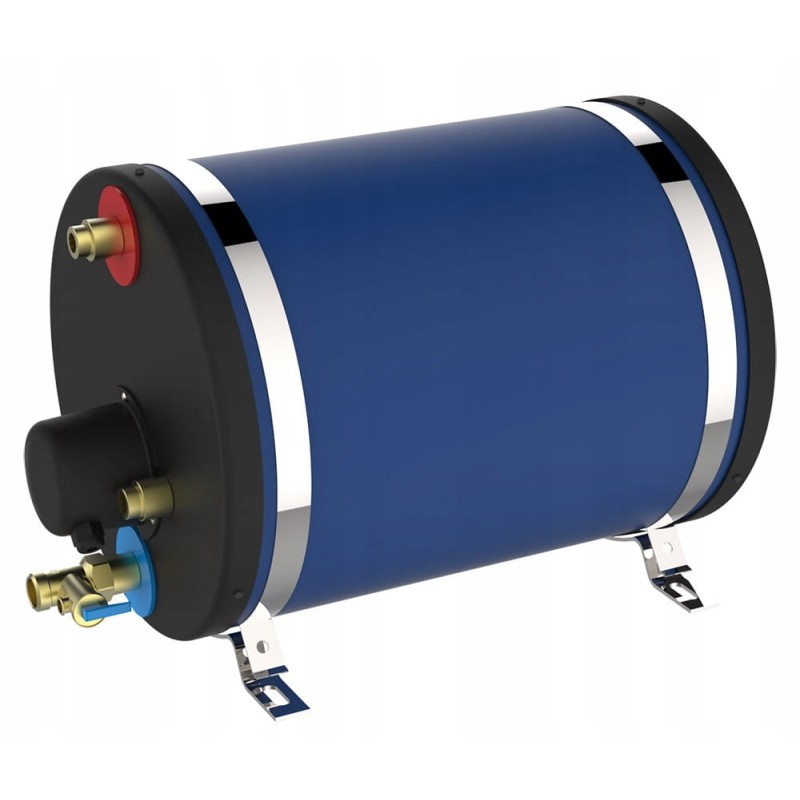

22l boiler, water heater with 850W exchanger

BOILER 22L WITH EXCHANGER 230V 850W BOILER 22 L

Water heaters - marine boilers

Marine boilers or water heaters from ATI DI MARIANI SRL can use excess heat from a running motorboat or sailing yacht engine to provide hot water.

They are also equipped with a 230V electric heater, for use when the engine is not running.

Boiler 22 l - hot water heater made of high-quality enameled steel.

A large-surface spiral exchanger provides a sufficient amount of hot water.

1 - Electric heater available in 850 W versions allows the production of hot water even with the engine turned off

2 - Control thermostat and safety limiter

3 - Standard power cable

4 - Safety valve

5 - Magnesium anode: guarantees protection against galvanic currents 6 - Outer cover made of pre-painted aluminum especially for marine applications 7 - AISI 304 stainless steel mounting brackets

8 - Enamelled exchanger: large exchange surface guarantees abundant hot water production 9 - Steel tank with glass-porcelain coating according to DIN 4753, thermally insulated with expanded closed-cell polyurethane (HFC, CFC, HCFC and HFA without)

It has a 230V heater with a power of 850 W with a thermostat Pressure valve and power cable included.

Power 850W 3.7A

Approach 1/2'

Weight 13 kg

Max pressure 500 kPa

DIMENSIONS,

A -390 mm

B -413 mm

C -397 mm
