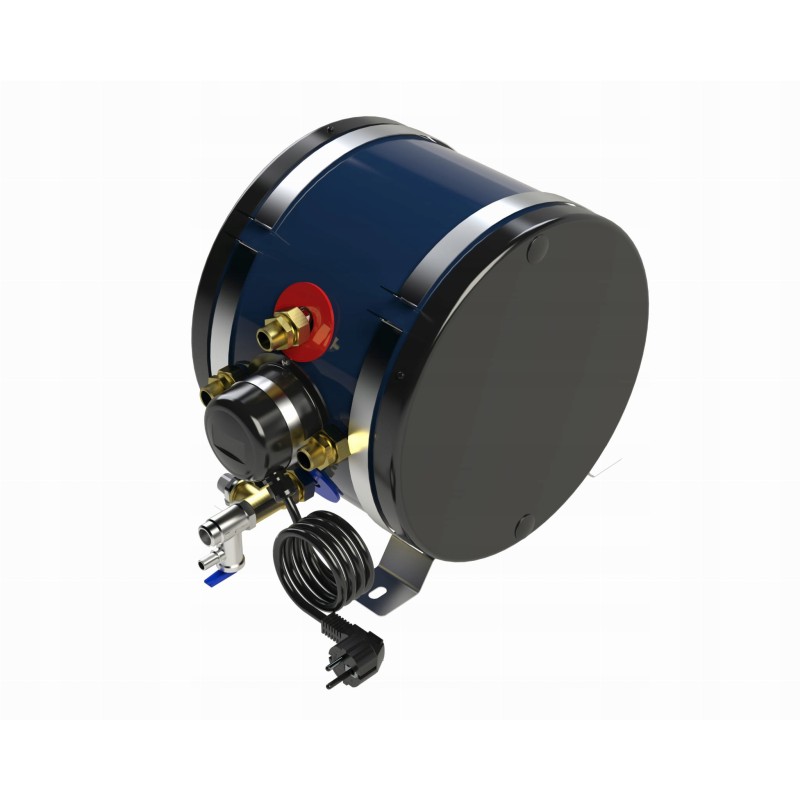

Boiler 12l water heater with 550W exchanger

BOILER 12L WITH EXCHANGER 230V 550W YACHT, CAMERA

BOILER FOR BOAT AND CAPER

Boiler 12 l - hot water heater made of high-quality enameled steel.

A large-surface spiral exchanger provides a sufficient amount of hot water.

The boiler is intended for installation in motorboats, sailing yachts and campers.

When the engine is running, it uses the heat from the small refrigeration circuit to heat the water in the boiler.

When parked, the heat source is an electric heater connected to an external 230V power supply, on a pier or at a campsite.

1 - Electric heater available in 550 W versions allows the production of hot water even with the engine turned off

2 - Control thermostat and safety limiter

3 - Standard power cable

4 - Safety valve

5 - Magnesium anode: guarantees protection against galvanic currents 6 - Outer cover made of pre-painted aluminum especially for marine applications 7 - Fixing brackets

8 - Enamelled exchanger: large exchange surface guarantees abundant hot water production 9 - Steel tank with glass-porcelain coating according to DIN 4753, thermally insulated with expanded closed-cell polyurethane (HFC, CFC, HCFC and HFA without)

It has a 230V heater with a power of 550 W with a thermostat Pressure valve and power cable included.

Power 550W 2.4A

Approach 1/2'

Weight 10 kg

Max pressure 500 kPa

DIMENSIONS,

A -255 mm

B -388 mm

C -320 mm
