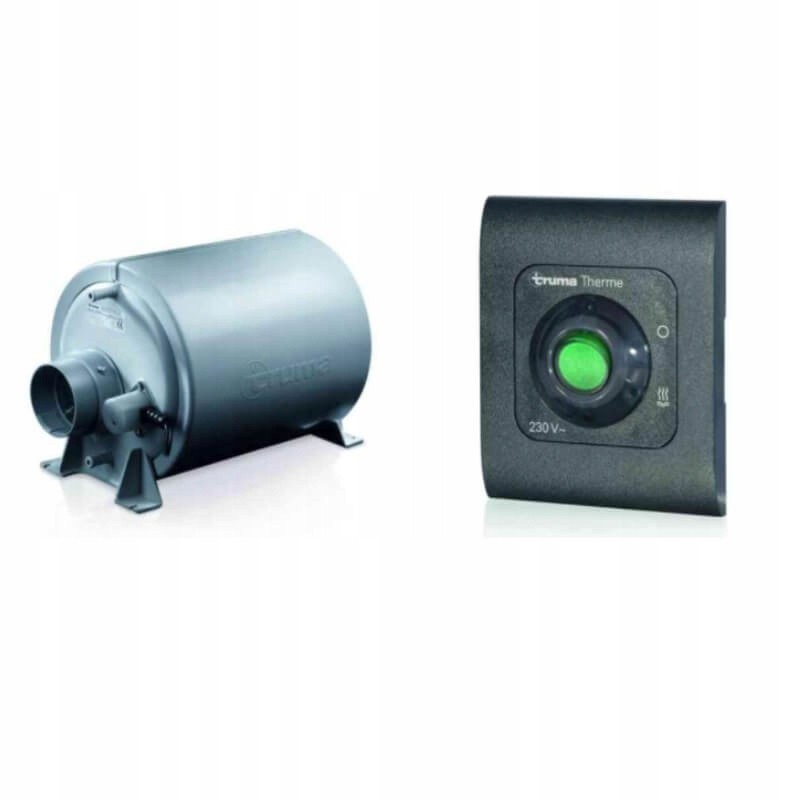

Terma with control panel tt2 truma 5l 230v

TERMA TT2 TRUMA The Truma boiler is a device designed to heat water in campers and caravans. Therma works very efficiently using warm air. In addition, the heating process can be accelerated by using an electric heater, which is efficient in summer but also allows for faster water heating in winter. Therma is characterized by a relatively short heating time. In electric mode, it heats up from 15 °C to 60 °C in 50 minutes. The water temperature is constantly regulated via the built-in thermostat to a maximum of 65 °C. The water tank has a capacity of 5 liters. Another advantage of Terma TT2 TRUMA is its low weight (only 2 kg) and compact dimensions. The power of the electric heater is 300 W (230 V). Power consumption at 230 V is 1.3 A. Water pressure maximum 1.2 bar. Max. temperature 65°C. Thanks to high-quality materials, the water maintains the quality of drinking water. Can be used with standard submersible pumps up to 1.2 bar. Terma with control panel, drain and air vent valve (without mixing valve).

TB water connection kit, please order separately.

CHARACTERISTIC FEATURES: Power supply 230V

Dimensions 37 x 23 x 22 cm

Efficient and quick heating with warm air

Compact size

THE SET INCLUDES: Electric heater: 230V/ 300 W

5L water tank,

Protective casing

Panel with switch and traffic lights

3x O-rings (seals)

2x drain valves

4x screws

PRODUCT PARAMETERS: Brand: TRUMA

Symbol: 42014-01

Features: LED / Control panel

Max. pressure: 1.2 bar

Voltage: 11 - 15V

Consumption: 1.3 A

Power supply: 230 V
