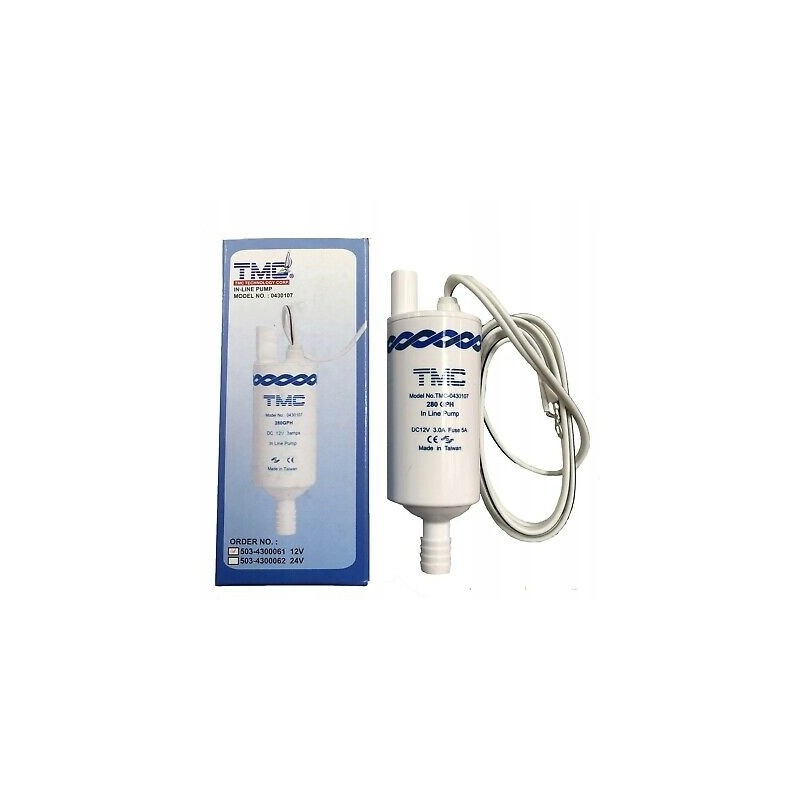

Flow water pump 12v 18l for a yacht and a camper

FLOW WATER PUMP - LINEAR 280 GPH / 1060L/HOUR

Manufacturer: TMC TECHNOLOGY

Model: 0430107

The TMC water flow pump is a product of the highest quality that will ensure that the water installation on your yacht or caravan works flawlessly.

The pump can operate as an external or booster pump built into the piping system after the first pump to increase flow rates, ideal for retrofitting existing systems.

Designed for drinking water for vertical installation.

CE / ISO-9001 / ISO-14001

Technical data:

Power supply: 12V

Capacity: 280 GPH - (1060 L/hour - 18 L/min)

Current consumption: 3 A

Recommended fuse: 5 A

Hose connector: 12.7MM

Lifting height: max 7 M

Weight: 160 g

Length: 137mm

Width: 43mm

Height: 40mm

Characteristics of the flow pump (linear):

The flow pump is not a self-priming pump.

The pump cannot run dry.

If the pump is not flooded by gravity, it should be supported by a hand or foot pump.

Do not mount the pump in a horizontal position.

The pump must be mounted and operated in a vertical position.

The pump cannot pump water with a temperature above 60 degrees Celsius

Before starting the pump, make sure there is water in the pipe and tank.

The pump has been designed for intermittent operation.

The product meets CE requirements.

The pump can work alone, but it usually works with a submersible pump and supports water flow on longer sections supplying water to taps, faucets, cisterns, etc., it should be installed below the water table, a non-return valve is needed above it.

Below are the exact dimensions, assembly method and photo gallery.
