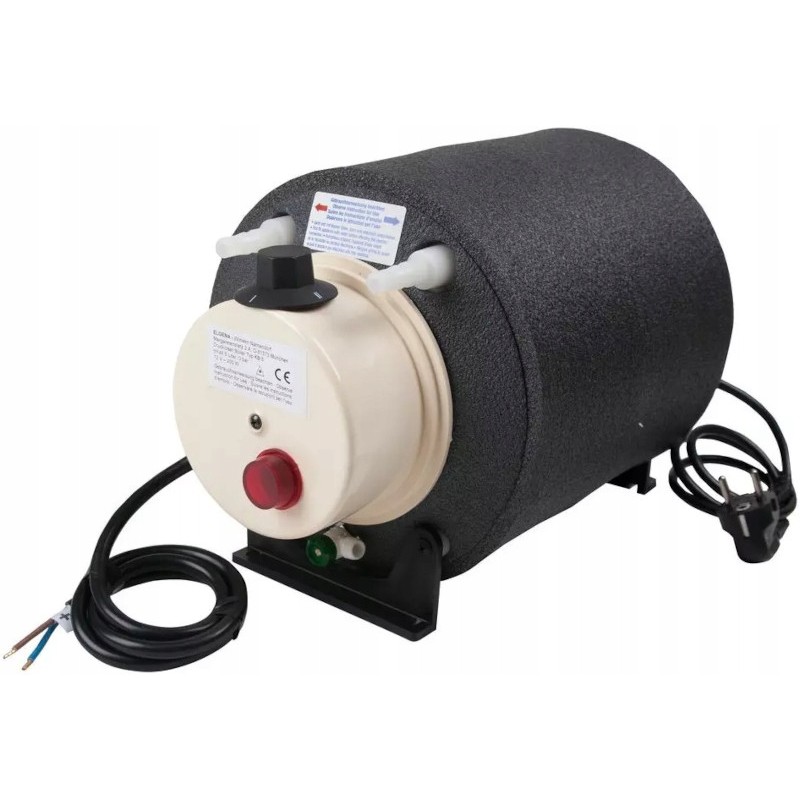

Boiler water heater Elgena KB6 combi 6l

LOW PRESSURE BOILER KB 6 COMBI BY ELGENAThe KB 6 Kombi boiler by Elgena has been specially designed for installation in mobile vehicles, such as caravans, campers or boats, or wherever there is little space or poor power supply conditions with a low degree of protection. It is a low-pressure device that can be connected to any water installation using appropriate fittings in the moving area. Suitable for submersible pumps without a non-return valve.

PRODUCT DESCRIPTION:

Manufacturer: Elgena

Model: KB 6 Kombi

Low pressure boiler

Designed for submersible pumps without a non-return valve, max. 0.8 bar

Dimensions (length x width x height): 41 x 23 x 24 cm

Capacity: 6 l

Voltage: 230 V ? and 12 V or 24 V

Power consumption: 230 V - 660 W (approx. 3 A), 12 V - 200 W (approx. 16 A), 230 V - 330 W (approx. 1.5 A) or combined

Connection cable: 230 V 1 m Schuko plug, 12 V cable 1 m 2 x 2.5 mm 2

Water connections: O 10 mm for hose connection

Water temperature: steplessly adjustable from 30 ° C - 80 ° C

Frost protection: adjustable from 0°C - F

Heating time: approx. 22 min (55°C 660 W)

Installation position: horizontal

Heating element material: stainless steel V4A / Incoloy

Tank material for water: PP plastic, suitable for drinking water

Insulation: PE foam

Boiler emptying: manual drain valve

Weight: 2 kg

Product code: REI67012U

Important: Exhibition goods, in good working order!!! CHARACTERISTIC FEATURES :

Low pressure device mainly used in caravans, commercial vehicles, campers and boats

The boiler can be used for several draw-off points, the possibility of connecting a hose to a submersible pump, a foot pump or a hand pump

In the case of a pressure water pump or water supply network, the device can only be connected to low pressure fittings and can only be used for a single tap

When the engine is running, excess electricity is consumed and hot water is available on site

Due to the low connected load, it can be used in almost any campsite or site for mooring a boat

Low energy consumption and quick heating with good insulation

Made of high-quality plastic, resistant to heat and corrosion

The device is light and takes up little space

Easy and quick installation using the mounting bracket

Boiler is delivered ready to connect
