Autarx standard carawater water treatment system

AUTARX STANDARD WATER TREATMENT SYSTEM BY CARAWATERThe AUTARX system by Carawater was created for people who want to enjoy self-sufficiency for longer. No matter how remote a place we are, we don't have to bother replenishing filtered water that runs out. Thanks to the synchronization and arrangement of special filtering modules, the AUTARX system transforms gray water into clean water. This contributes to maintaining important water resources.

PRODUCT DESCRIPTION:

Manufacturer: Carawater

Model: Autarx Standard

Case dimensions (H x W x D): 37.5 x 22.5 x 12 cm

Filter capacity: up to 15 l / h

Filter replacement required after 6000 l

Package weight: approx. 7.7 kg

Instructional video: https://youtu.be/vugtFEz75sI

Product code: AX-S -0001

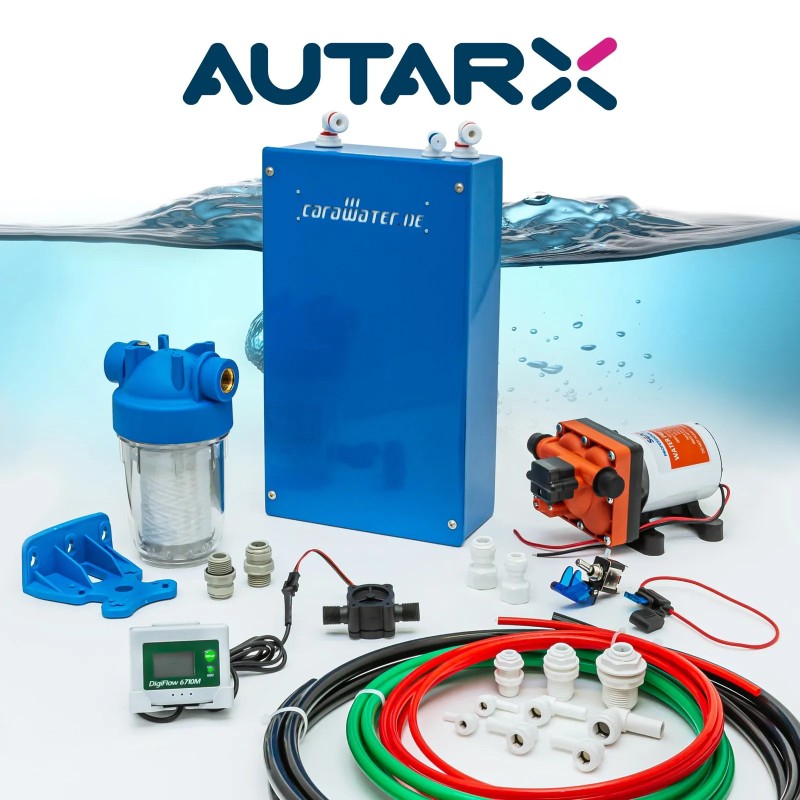

INCLUDED:

Central unit

Pre-filter

SEAFLO SFDP1-030-055-42 pump

Flow meter

Connection material

Membrane PUMP

Producer: Seaflo

Model: SFDP1-030-055-42

4-chamber positive displacement diaphragm pump, self-priming, with the possibility of dry operation

Voltage: 12V

Cut-off pressure: 55 PSI / 3.8 BAR

Max. current: 7.5 A

Max. temperature: 60°C (140°F)

Control type: pressure switch and bypass control

Weight: 1.9 kg

OPERATION OF THE AUTARX SYSTEM:

Coarse dirt is retained by the external sediment filter. The degree of contamination can be recognized through the transparent filter housing and the filter element can be cleaned or replaced.

Subsequent filtration takes place through an activated carbon filter, the filtration rate is very high. As a result, approximately 99% of all particles of free chlorine, chlorine-based solvents, hydrocarbon aromatics and 85% of pesticides and multi-aromatic compounds based on chlorine, phenol, benzene and other organic substances with a size above 5 µm are removed from the filtered water.

Raw materials that are larger than a water molecule are retained and discharged into the sewage. A low-pressure membrane separates the incoming water into wastewater and clean water. The filtered water is passed through another activated carbon filter before being introduced into the fresh water tank.

In the last stage, a capillary membrane is used as a barrier against microorganisms. The flow meter included in the set visualizes the amount of water restored and indicates the need to flush the system and replace the filter. Rinsing is done with approximately 20 liters of clean water and should be done after 600 liters.
