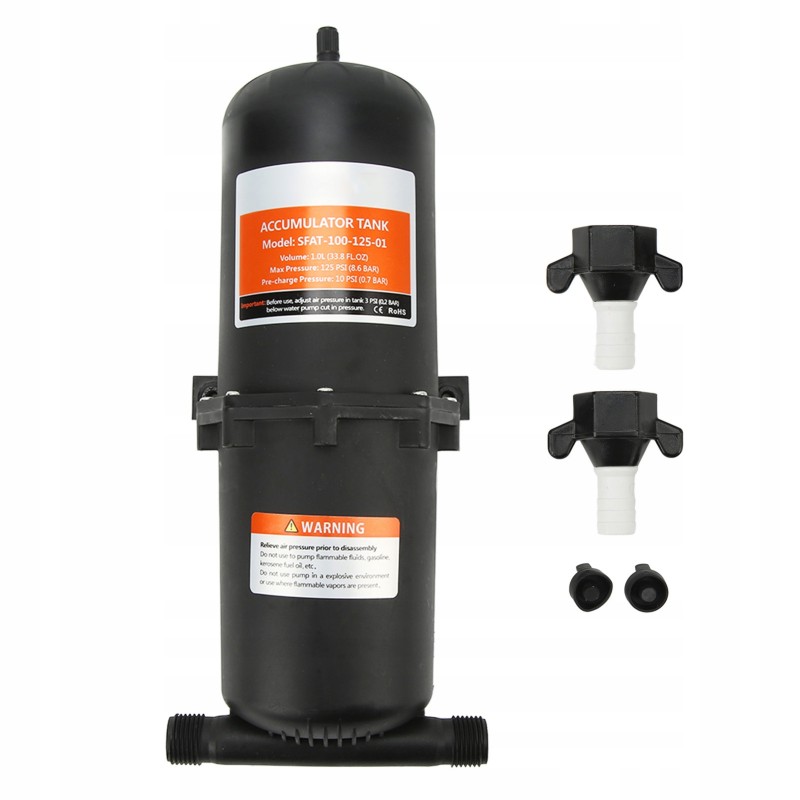

1l expansion tank for the pressure pump

Feature:

1. Function: The pressure tank can effectively absorb the excess heat entering the water line due to the heater.

2. Performance: When the RV is used for a long time, causing water leakage, the pressure tank can effectively reduce the frequent operation of the pump.

3. Constant pressure: The storage tank has constant pressure, which prevents pressure increases and decreases in the system.

4. Strong shock absorption: The rubber insert has a strong seal and plays the role of pressure stabilization and buffering, making the water flow smoother.

5. Outstanding features: small and delicate, low noise, detachable, easy to carry, low power consumption and long service life.

EXPANSION TANK 1L FOR PRESSURE PUMP

1L EXPANSION TANK FOR PRESSURE PUMP

Specification:

Item type: RV pressure tank

Material: ABS, rubber, metal

Capacity: 1L

Inflation pressure: 10PSI/0.78BAR

Maximum pressure: 125PSI/8.6BAR

Filling door air: standard automatic tire valve

Inlet/outlet size: 1/2 inch external thread connection

Application: widely used on ships, yachts, campers and other pressure stabilization systems

EXPANSION TANK 1L FOR PRESSURE PUMP

1L EXPANSION TANK FOR PRESSURE PUMP

Installation:

Easy to install in any direction and can be installed in any direction according to the size of the space, simple operation

1. Disconnect the power of the pump and according to the size of the installation space

2. Open the faucet and install a pressure tank in series at the water outlet end of the pump towards any installed pressure tank.

3. Fix the water pipe firmly at the inlet and outlet, if it is not fixed firmly, it may result in leakage or equipment failure.

4. After installation and connection, start the pump, wait until the water flows through the entire system, the water flows from the terminal equipment and bleed the entire piping system.

Precautions.

1. Pre-inflation pressure value of 10 psi (0.7 kg), the pressure inside the pressure tank exceeds 125 psi, may cause the tank to explode and cause personal injury.

2. The pressure inside the pressure tank is lower than the pump starting pressure value of 3-5 psi, and the pump is best matched.

3. Use a pump with a pressure gauge through the valve at the back of the tank to adjust the air pressure inside the tank.

. EXPANSION TANK 1L FOR PRESSURE PUMP

1L EXPANSION TANK FOR PRESSURE PUMP

Package List:

1 x Pressure Tank

1 x User Manual

2 Accessories
