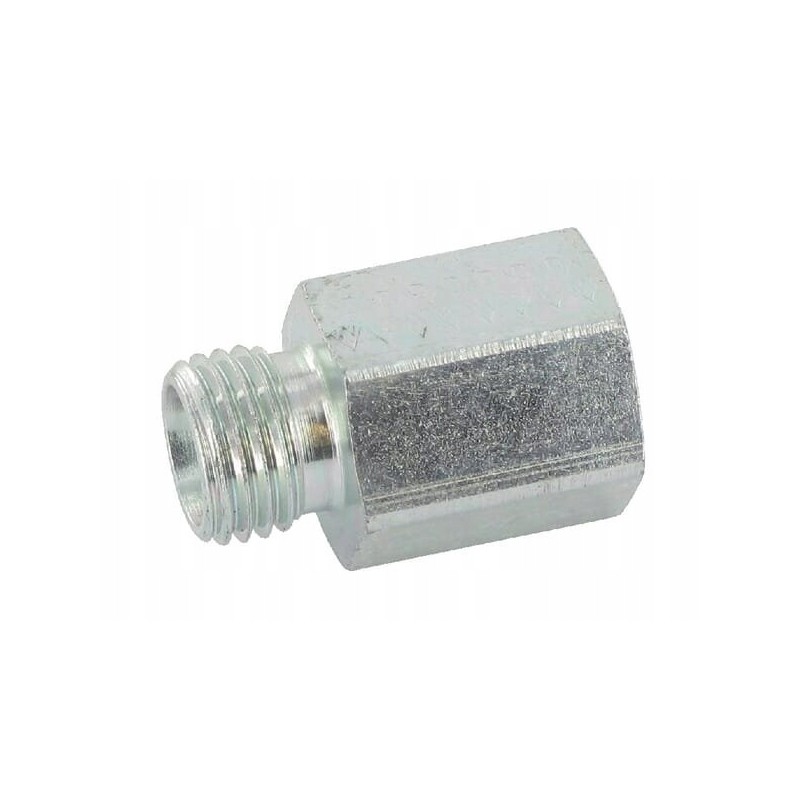

Connector 10l r3 8 gas10lr38 voss

Connector 10L R3/8 Parameters

Part number: GAS10LR38

Unit: piece

Manufacturer: Voss

Properties: - High corrosion resistance

Shape: Straight - 2 sides of the connection

Connector type: Cutting ring

Connector type - male/female: Male

Connection diameter: 10 mm

Connector length: 17 mm

Connector thread diameter: M16

Connector No. 1 thread pitch: 1.5 mm

Connector thread type: BSPP

Wrench size for connector [S1]: 24 mm

Connector no. 2 type: Thread

Connector no. 2 type - male/female: Female

Connector no. 2 thread diameter: 3/8 inch

Turns per inch of connector no. 2 thread: 19

Connector thread type No. 2: BSP

Wrench size for connector No. 2 [S2]: 19 mm

Pipe diameter: 10 mm

Inner diameter: 8 mm

Length: 33 mm

Max working pressure: 315 BAR

Series: L

Specifications

- For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Dimension from the axis of the joint to the end of the next joint [L1]

41mm

Dimension from the axis of joint no. 2 to the end of the next joint [L2]

26mm

Surface treatment

- Zinc

- Nickel plated
