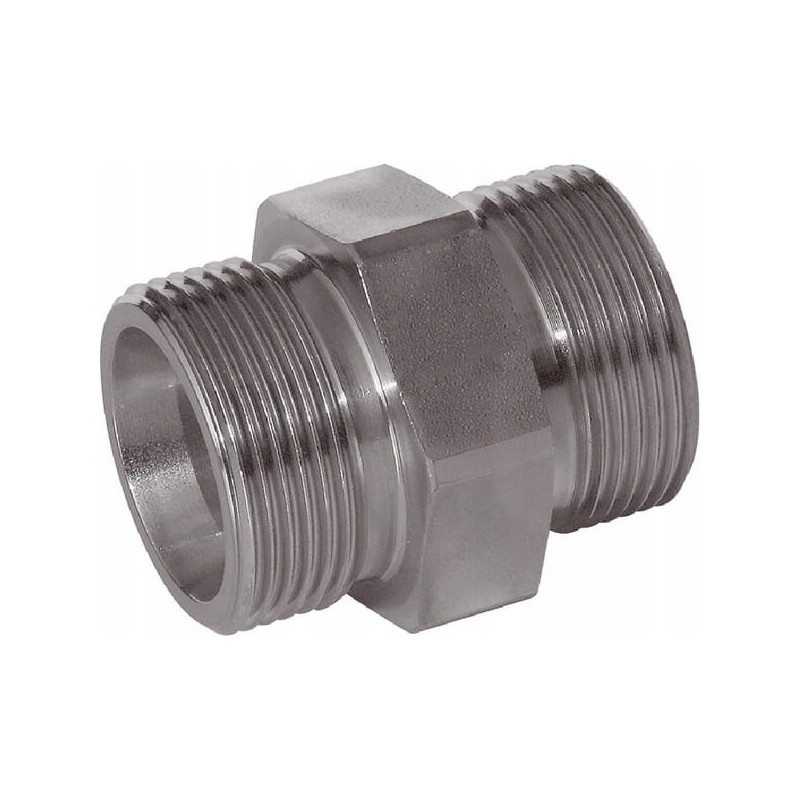

Straight connector m42x2 30s gs30s voss

Straight connector M42x2 30S Parameters

Part number: GS30S

Unit: piece

Manufacturer: Voss

Properties: - High corrosion resistance

Shape: Straight - 2 sides of the connection

Connector type: Cutting ring

Connector type - male/female: Male

Connection Diameter: 30mm

Connector Thread Diameter: M42

Connector No. 1 Thread Pitch: 2mm

Connector Thread Type: Metric

Connector [S1] Wrench Size: 46mm

Connector No. 2 Type: Ring cutting

Connector No. 2 type - male/female: Male

Connection No. 2 diameter: 30 mm

Connector No. 2 thread diameter: M42

Connector No. 2 thread pitch: 2 mm

Connector No. 2 thread type: Metric

Wrench size for connector no. 2 [S2]: 50 mm

Distance between connectors [L1]: 27 mm

Pipe diameter: 30 mm

Inner diameter: 25 mm

Total length [L]: 54 mm

Max working pressure: 420 BAR

Series: S

Specifications

- For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version DIN standard

- 2353

- 2401

Surface treatment

- Zinc

- Nickel plated
