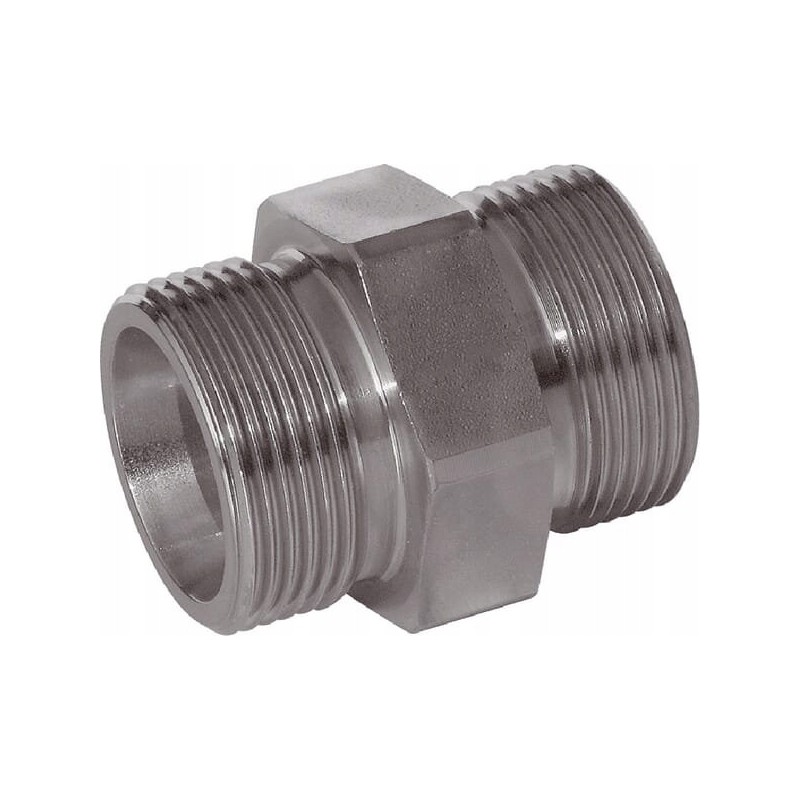

Straight connector m18x1 5 10s gs10s voss

Straight connector M18x1.5 10S Parameters

Part number: GS10S

Unit: piece

Manufacturer: Voss

Properties: - High corrosion resistance

Shape: Straight - 2 sides of the connection

Connector type: Cutting ring

Connector type - male/female: Male

Connection diameter: 10 mm

Connector thread diameter: M18

Connector no. 1 thread pitch: 1.5 mm

Connector thread type: Metric

Wrench size for connector [S1]: 19 mm

Connector no. 2 type : Cutting ring

Connector No. 2 type - male/female: Male

Connect. No. 2: Metric

Wrench size for connector No. 2 [S2]: 22 mm

Distance between connectors [L1]: 17 mm

Pipe diameter: 10 mm

Inner diameter: 7 mm

Total length [L ]: 32 mm

Max working pressure: 800 BAR

Series: S

Specifications

- For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version DIN standard

- 2353

- 2401

Surface treatment

- Zinc

- Nickel plated
