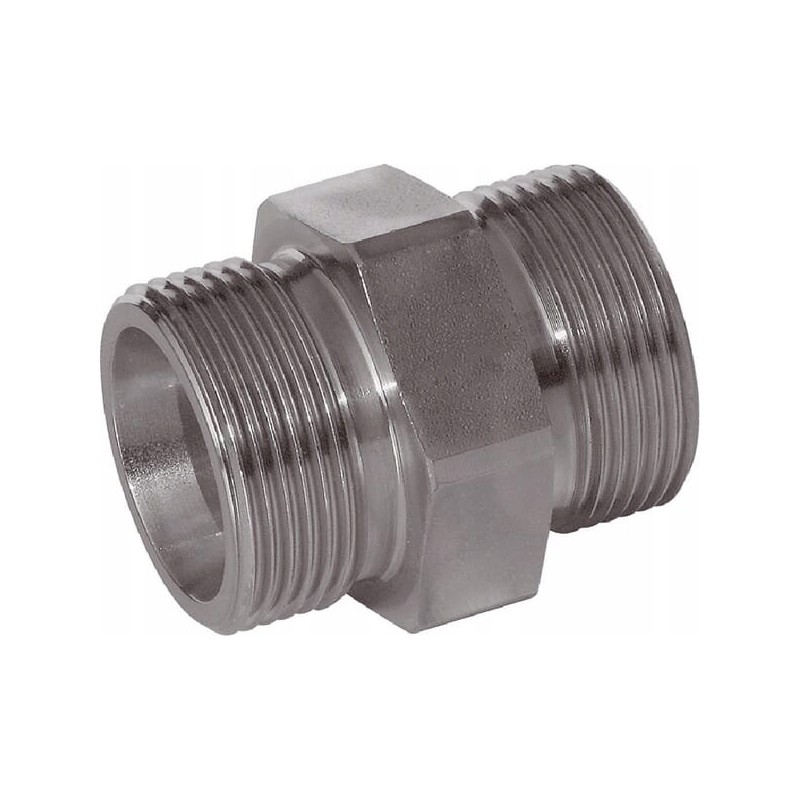

Straight connector M24x1.5 16S Parameters

Part number: GS16S

Unit: piece

Manufacturer: Voss

Properties: - High corrosion resistance

Shape: Straight - 2 sides of connection

Connector type: Cutting ring

Connector type - male/female: Male

Connection diameter: 16 mm

Connector thread diameter: M24

Connector no. 1 thread pitch: 1.5 mm

Connector thread type: Metric

Wrench size for connector [S1]: 27 mm

Connector no. 2 type : Cutting Ring

Connector No. 2 Type - Male/Female: Male

Connection No. 2 Diameter: 16mm

Connector No. 2 Thread Diameter: M24

Connector No. 2 Thread Pitch: 1.5mm

Connector Thread Type No. 2: Metric

Wrench size for connector No. 2 [S2]: 30 mm

Distance between connectors [L1]: 21 mm

Pipe diameter: 16 mm

Inner diameter: 12 mm

Total length [L ]: 38 mm

Max working pressure: 630 BAR

Series: S

Specifications

- For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version DIN standard

- 2353

- 2401

Surface treatment

- Zinc

- Nickel plated
