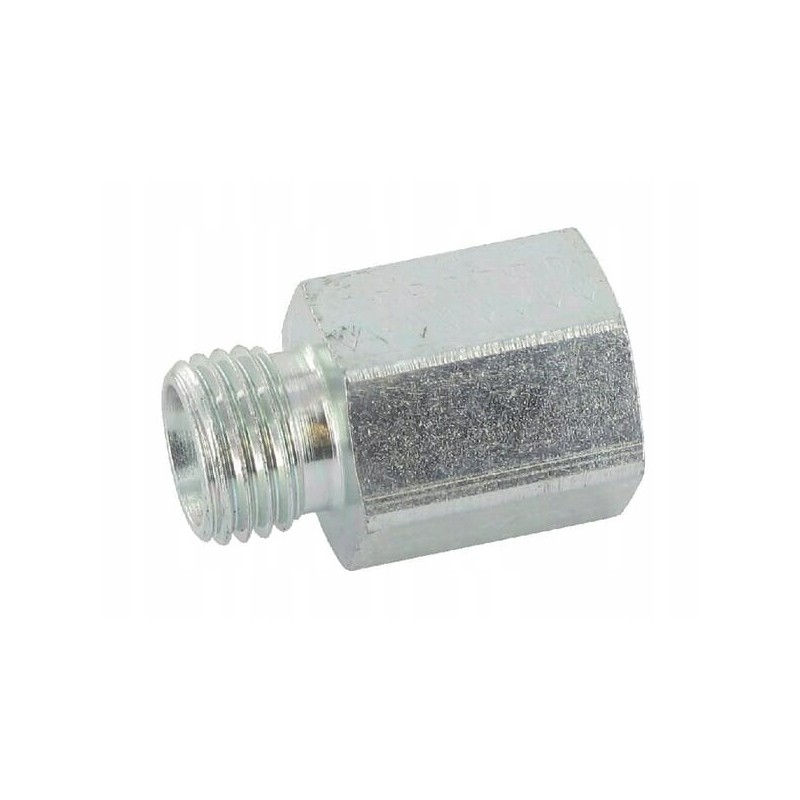

6L M10 Connector Parameters

Part number: GAS6LM10

Unit: piece

Manufacturer: Voss

Features: - High corrosion resistance

Shape: Straight - 2 sides connection

Connector type: Cutting ring

Connector type - male/female: Male

Connection diameter: 6 mm

Connector length: 12.5 mm

Connector thread diameter: M12

Connector No. 1 thread diameter: 10 mm

Connector thread length [K]: 12.5 mm

Connector thread pitch No. 1: 1 mm

Connector Thread Type: Metric

Connector [S1] Wrench Size: 14 mm

Connector No. 2 Type: Thread

Connector No. 2 Male/Female Type: Female

Connector No. Thread Diameter 2: M10

Thread pitch of connector no. 2: 1.5 mm

Thread type of connector no. 2: Metric

Wrench size for connector no. 2 [S2]: 14 mm

Pipe diameter: 6 mm

Inner diameter : 4.88 mm

Length: 26.5 mm

Max working pressure: 315 BAR

Series: L

Specifications

- For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Dimension from the axis of the joint to the end of the next joint [L1]

34.5mm

Dimension from the axis of joint no. 2 to the end of the next joint [L2]

19.5mm

Surface treatment

- Zinc

- Nickel plated
