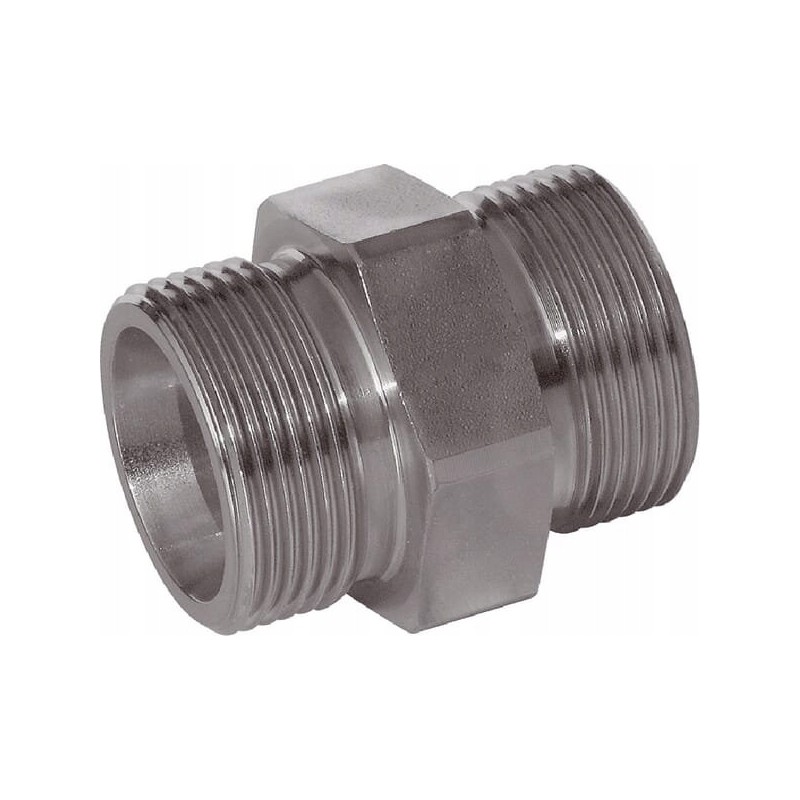

Straight connector m30x2 20s gs20s voss

Straight connector M30x2 20S Parameters

Part number: GS20S

Unit: piece

Manufacturer: Voss

EAN: 8719607009997

Properties: - High corrosion resistance

Shape: Straight - 2 sides of the connection

Connector type: Cutting ring

Connector type - male /female: Male

Connection diameter: 20mm

Connector thread diameter: M30

Connector #1 thread pitch: 2mm

Connector thread type: Metric

Wrench size for [S1] connector: 32mm

Type Connector No. 2: Cutting Ring

Connector No. 2 Type - Male/Female: Male

Connection No. 2 Diameter: 20 mm

Connect No. 2 Thread Diameter: M30

Connect No. 2 Thread Pitch: 2 mm connector no. 2: Metric

Wrench size for connector no. 2 [S2]: 36 mm

Distance between connectors [L1]: 23 mm

Pipe diameter: 20 mm

Inner diameter: 16 mm

Total length [ L]: 44 mm

Max working pressure: 420 BAR

Series: S

Specifications

- For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version DIN standard

- 2353

- 2401

Surface treatment

- Zinc

- Nickel plated
