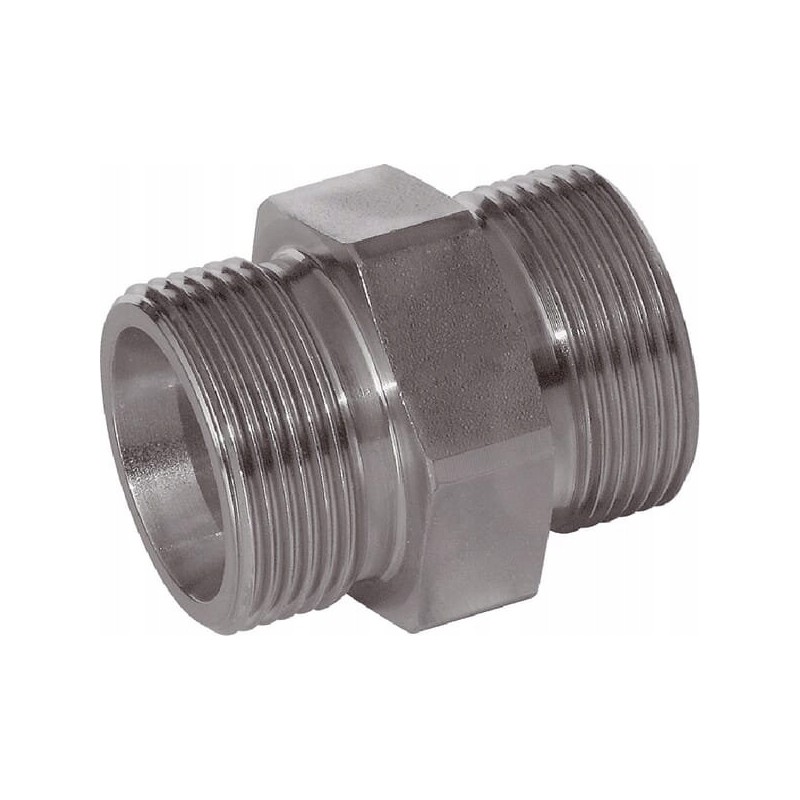

Straight connector m16x1 5 10l gs10l voss

Straight connector M16x1.5 10L Parameters

Part number: GS10L

Unit: piece

Manufacturer: Voss

EAN: 8716106787616

Properties: - High corrosion resistance

Shape: Straight - 2 sides of the connection

Connector type: Cutting ring

Connector type - male /female: Male

Connection diameter: 10mm

Connector thread diameter: M16

Connector #1 thread pitch: 1.5mm

Connector thread type: Metric

Wrench size for [S1] connector: 17mm

Connector No. 2 Type: Cutting Ring

Connector No. 2 Type - Male/Female: Male

Connection No. 2 Diameter: 10mm

Connector No. 2 Thread Diameter: M16

Connector No. 2 Thread Pitch: 1.5mm

Coupling No. 2 Thread Type: Metric

Wrench Size for Coupling No. 2 [S2]: 19 mm

Distance Between Couplings [L1]: 13 mm

Pipe Diameter: 10 mm

Inner Diameter: 8 mm

Total length [L]: 27 mm

Max working pressure: 500 BAR

Series: L

Specifications

- For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version DIN standard

- 2353

- 2401

Surface treatment

- Zinc

- Nickel plated
