• Online only

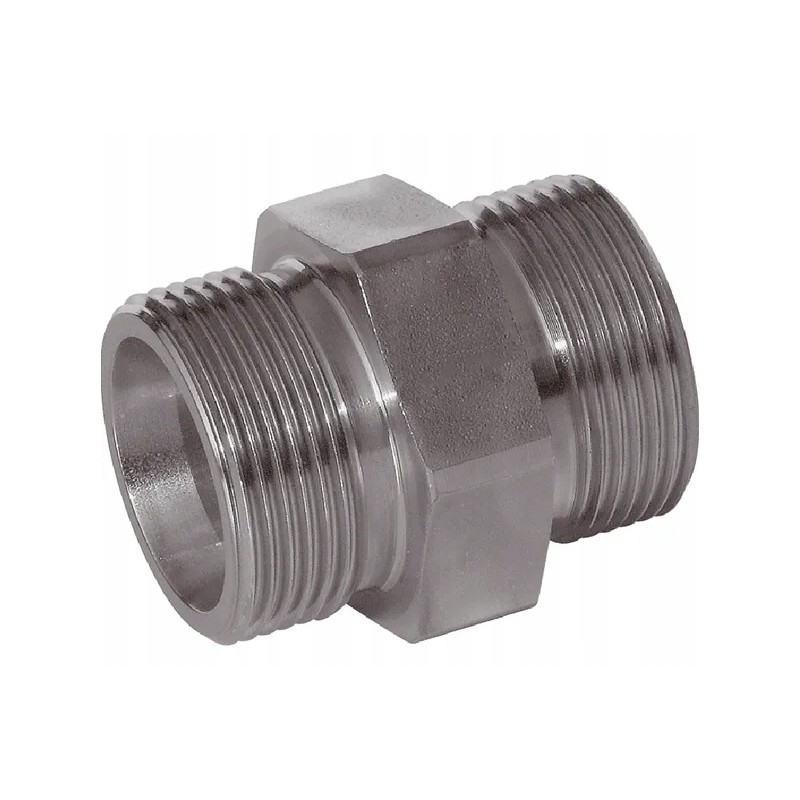

Gs22l straight connector m30x2 22l
  • Gs22l straight connector m30x2 22l

Gs22l straight connector m30x2 22l

15013129215545
£15.00
Quantity
5 Items

Description
GS22L Straight connector M30x2 22LEAN

8716106787647

Benefits

Limited risk of leakage

Product details

For direct connection to metric hose nut or pre-assembled connector

High corrosion resistance

Shape

Straight - 2 sides connector

Connector type #1

Ring cutting

Connector no. 1 type - male/female

Male

Connection diameter

22 mm

Connector no. 32.0 mm

Connector type no. 2

Cutting ring

Connector type no. 2 - male/female

Male

Connection diameter no. 2

22 mm

Connection thread diameter no. No. 2

Metric

S2 Wrench size for connector No. 2

36.0 mm

L1 Distance between connectors

20 mm

Pipe diameter

22 mm

DIN standard

2353

2401

Inner diameter

19 mm

L Total length

35 mm

Surface treatment

Zinc

Nickel-plated

Working pressure max.

250 BAR

Series

L

Product Details
15013129215545
GS22L
5 Items
New

Data sheet

Part Number
GS22L
