Connector dn13 oe16mm weo 3 8 weo147210806 cejn

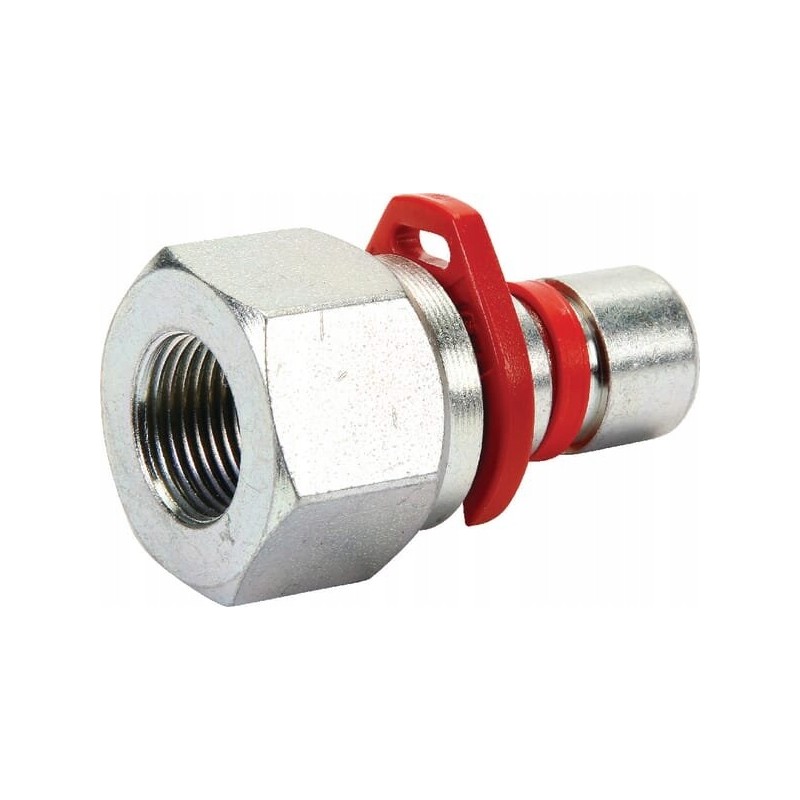

Connector DN13 ø16 mm WEO 3/8 Parameters

Part number: WEO147210806

Unit: piece

Manufacturer: Cejn

EAN: 7391390268389

Surface treatment: Hardened

A: 16 mm

B: 49.5 mm

Max. working pressure [bar]: 350

C: 22 mm

D: 9.5 mm

Material: Steel

F [BSP]: 30.6 mm

E: G 3/8'

Min. temp.: -30 °C

Max. temp: +100 °C

Specifications

- Innovative plug-in system with threadless connections

- Connection only with a screwdriver - Takes up minimal space.

Benefits

- Time saving

- Easier work

- Very simple operation.

- The hoses do not rotate when tightening Application

- WEO system plug sockets

- Front loaders

- Forklifts

- Side loading platforms

- Machines with a narrow construction area Properties

- Total tightness - Greater service life of hoses - Does not contain Cr(III) and Cr(VI)

- Safety factor of at least 4:1

- TÜV certificate

Technical information

- The complete WEO connector consists of 1 socket and 1 plug - Suitable for layers 1 + 2 and 4SP

hoses
