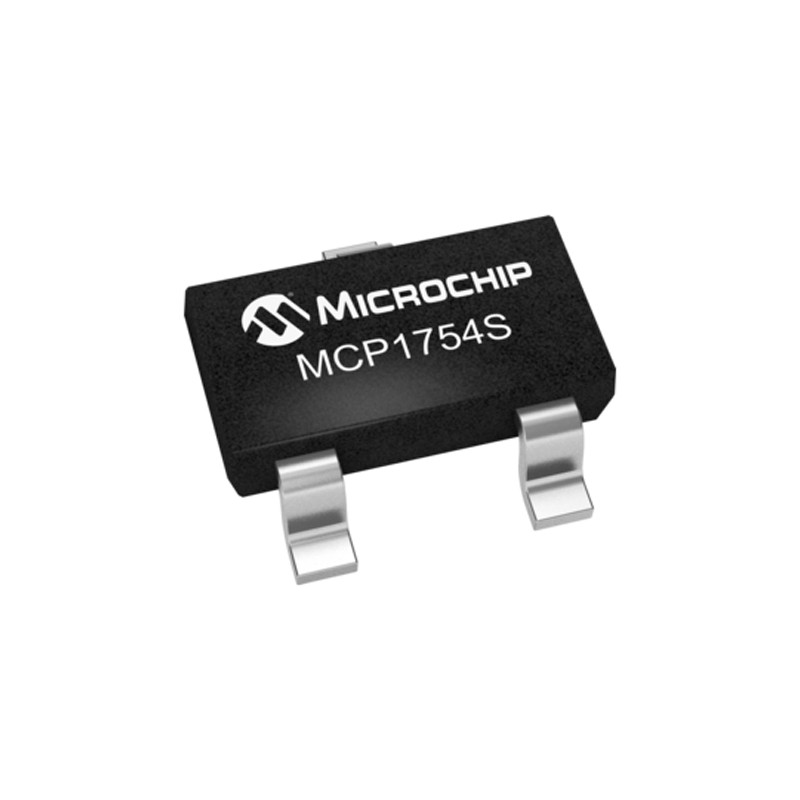

    50 pcs - MCP1754ST-5002E/CB Microchip MCP1754ST-5002E/CB, 1 Low Dropout Voltage, Voltage Regulator 150mA, 5 V 3-Pin, SOT-23A
    • 50 pcs - MCP1754ST-5002E/CB Microchip MCP1754ST-5002E/CB, 1 Low Dropout Voltage, Voltage Regulator 150mA, 5 V 3-Pin, SOT-23A

    50 pcs - MCP1754ST-5002E/CB Microchip MCP1754ST-5002E/CB, 1 Low Dropout Voltage, Voltage Regulator 150mA, 5 V 3-Pin, SOT-23A

    50(Allparts)7559524
    Microchip
    50 pcs - MCP1754ST-5002E/CB Microchip MCP1754ST-5002E/CB, 1 Low Dropout Voltage, Voltage Regulator 150mA, 5 V 3-Pin, SOT-23A
    £53.16
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    MCP1754 Low Dropout Voltage RegulatorThe Microchip MCP1754 is a Low Dropout (LDO) Voltage Regulator that offers high PSRR performance. Operating from an input of 3.6 to 16 V the MCP1754 delivers up to 150 mA of current and offers a low quiescent current of 56 μA. 1 μF of output capacitance is sufficient to stabilise the output. Also the MCP1754 has a Current Foldback feature to help protect the device.High PSRR: >,70 dB @ 1 kHz (typical)56.0 μA Typical Quiescent CurrentInput Operating Voltage Range: 3.6 to 16.0 V150 mA Output CurrentLow-Dropout Voltage: 300 mV @ 150 mA (typical)0.4% Output Voltage Tolerance (typical)Output Voltage Tolerances of ±2.0% Over Entire Temperature RangeStable with Minimum 1.0 μF Output CapacitancePower Good OutputShutdown InputTrue Current Foldback ProtectionShort-Circuit ProtectionOver-temperature ProtectionLDO (Low Dropout) Linear Voltage Regulators, Microchip
    Product Details
    Microchip
    50(Allparts)7559524
    MCP1754ST-5002E/CB
    10 Items

    Data sheet

    Manufacturer
    Microchip
    Dimensions
    3.1 x 1.8 x 1.3mm
    Output voltage
    5 V
    Number of outputs
    1
    A-Supplier
    Allparts-UK/15/R-15
    Mounting Type
    Surface Mount
    Output Type
    Fixed
    Maximum Input Voltage
    16 V
    Accuracy
    2%
    Maximum Output Current
    150mA
    Pin Count
    3
    Package Type
    SOT-23A
    Minimum Input Voltage
    3.3 V
    Load Regulation
    0 %
    Line Regulation
    0.05 %/V
    Quiescent Current
    0.09mA
    Regulator Type
    Low Dropout Voltage
