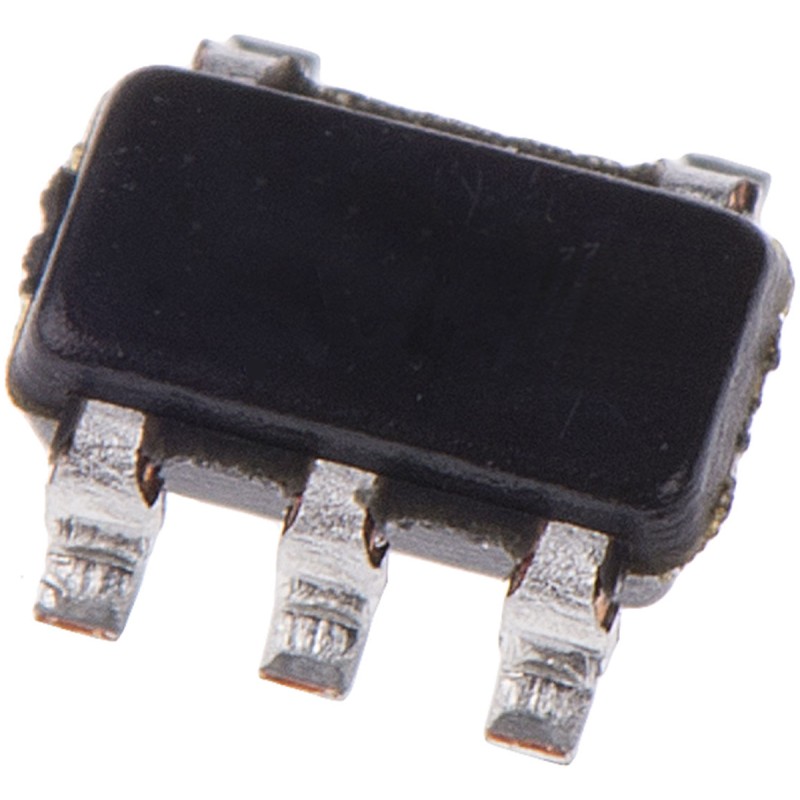

    10 pcs - MCP1804T-A002I/OT Microchip MCP1804T-A002I/OT, 1 Low Dropout Voltage, Voltage Regulator 150mA, 10 V 5-Pin, SOT-23
    • 10 pcs - MCP1804T-A002I/OT Microchip MCP1804T-A002I/OT, 1 Low Dropout Voltage, Voltage Regulator 150mA, 10 V 5-Pin, SOT-23
    • 10 pcs - MCP1804T-A002I/OT Microchip MCP1804T-A002I/OT, 1 Low Dropout Voltage, Voltage Regulator 150mA, 10 V 5-Pin, SOT-23

    10 pcs - MCP1804T-A002I/OT Microchip MCP1804T-A002I/OT, 1 Low Dropout Voltage, Voltage Regulator 150mA, 10 V 5-Pin, SOT-23

    10(Allparts)7047630
    Microchip
    10 pcs - MCP1804T-A002I/OT Microchip MCP1804T-A002I/OT, 1 Low Dropout Voltage, Voltage Regulator 150mA, 10 V 5-Pin, SOT-23
    £28.50
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    MCP1804 Low Dropout Voltage RegulatorThe Microchip MCP1804 is a Low Dropout (LDO) Voltage Regulator that operates from an input of 2.0 V to 28 V while delivering up to 150 mA of current. The device offers a low quiescent current of 50 μA and only 1 μF of output capacitance is sufficient to stabilise the output. The MCP1804 also has a Current Foldback feature to help protect the device.Features150 mA Output CurrentLow Dropout Voltage: 260 mV @ 20 mA, VR = 3.3 V (typical)50 μA Quiescent Current (typical)0.01 μA Shutdown Current (typical)Input Operating Voltage Range: 2.0 V to 28.0 VOutput Voltage Accuracy: ±2%Stable with Ceramic Output CapacitorsCurrent Limit Protection with Current FoldbackShutdown PinHigh PSRR: 50 dB Typical @ 1 kHzLDO (Low Dropout) Linear Voltage Regulators, Microchip
    Product Details
    Microchip
    10(Allparts)7047630
    MCP1804T-A002I/OT
    10 Items

    Data sheet

    Manufacturer
    Microchip
    Dimensions
    3.1 x 1.8 x 1.3mm
    Output voltage
    10 V
    Number of outputs
    1
    A-Supplier
    Allparts-UK/15/R-15
    Mounting Type
    Surface Mount
    Output Type
    Fixed
    Maximum Input Voltage
    28 V
    Accuracy
    ±2%
    Maximum Output Current
    150mA
    Pin Count
    5
    Package Type
    SOT-23
    Minimum Input Voltage
    2 V
    Load Regulation
    175 mV
    Line Regulation
    0.3 %/V
    Quiescent Current
    0.05mA
    Regulator Type
    Low Dropout Voltage
