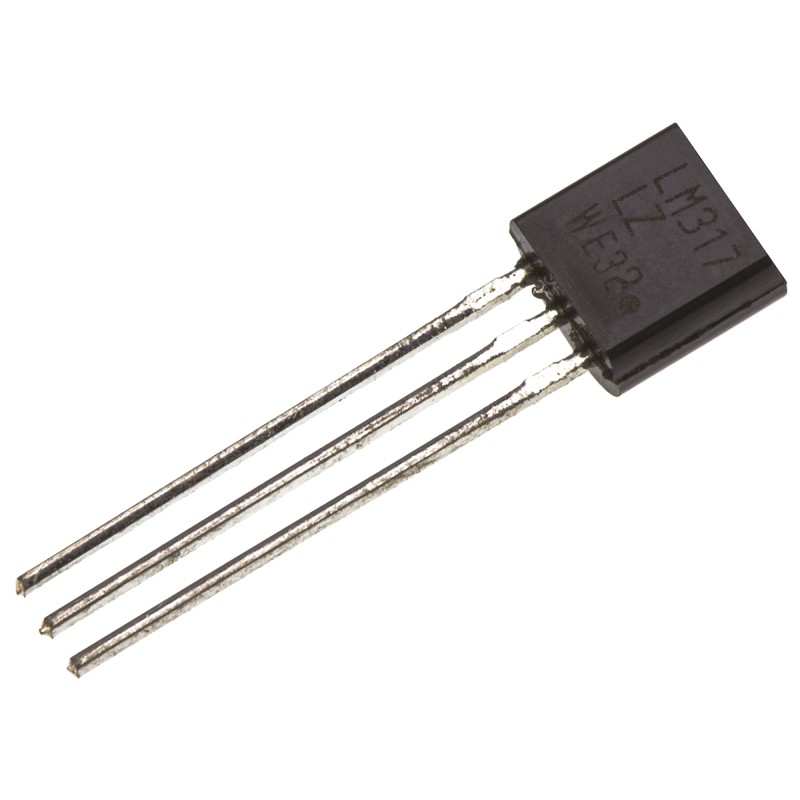

    10 pcs - LM317LZG onsemi LM317LZG, 1 Linear Voltage, Voltage Regulator 20mA, 1.2 - 37 V 3-Pin, TO-92
    • 10 pcs - LM317LZG onsemi LM317LZG, 1 Linear Voltage, Voltage Regulator 20mA, 1.2 - 37 V 3-Pin, TO-92

    10 pcs - LM317LZG onsemi LM317LZG, 1 Linear Voltage, Voltage Regulator 20mA, 1.2 - 37 V 3-Pin, TO-92

    10(Allparts)5164783
    ONSEMI
    10 pcs - LM317LZG onsemi LM317LZG, 1 Linear Voltage, Voltage Regulator 20mA, 1.2 - 37 V 3-Pin, TO-92
    £24.30
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    1.2 – 37 V Linear voltage regulator, ON SemiconductorON Semiconductor LM317 series is an adjustable Linear Voltage Regulator. The 3-terminal positive voltage regulator can offer an output current of 1.5A and more with an output voltage ranging between 1.2 to 37 V. The easy to use LM317 adjustable voltage regulator can be used in various applications such as on-card regulation and being utilised as a programmable output regulator it can be used as a precision current regulator by attaching a fixed resistor between the adjustment and output.Output Voltage Range: 1.25 V to 37 VOutput Current: 1.5 AShort circuit current limiting, Thermal protection, and Safe-area compensationFloating Operation for High-Voltage ApplicationsLinear Voltage Regulators, ON Semiconductor
    Product Details
    ONSEMI
    10(Allparts)5164783
    LM317LZG
    10 Items

    Data sheet

    Manufacturer
    ONSEMI
    Dimensions
    5.2 x 4.19 x 8mm
    Width
    4.19mm
    Height
    7.85 - 8.15mm
    Length
    5.2mm
    Output voltage
    1.2 - 37 V
    Number of outputs
    1
    A-Supplier
    Allparts-UK/15/R-15
    Maximum Operating Temperature
    +125 °C
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    0 °C
    Output Type
    Adjustable
    Accuracy
    ±4%
    Maximum Output Current
    20mA
    Pin Count
    3
    Package Type
    TO-92
    Load Regulation
    0.5 %
    Line Regulation
    0.07 %/V
    Regulator Type
    Linear Voltage
