Voltage regulator rectifier l700 18 53

The subject of the offer is:

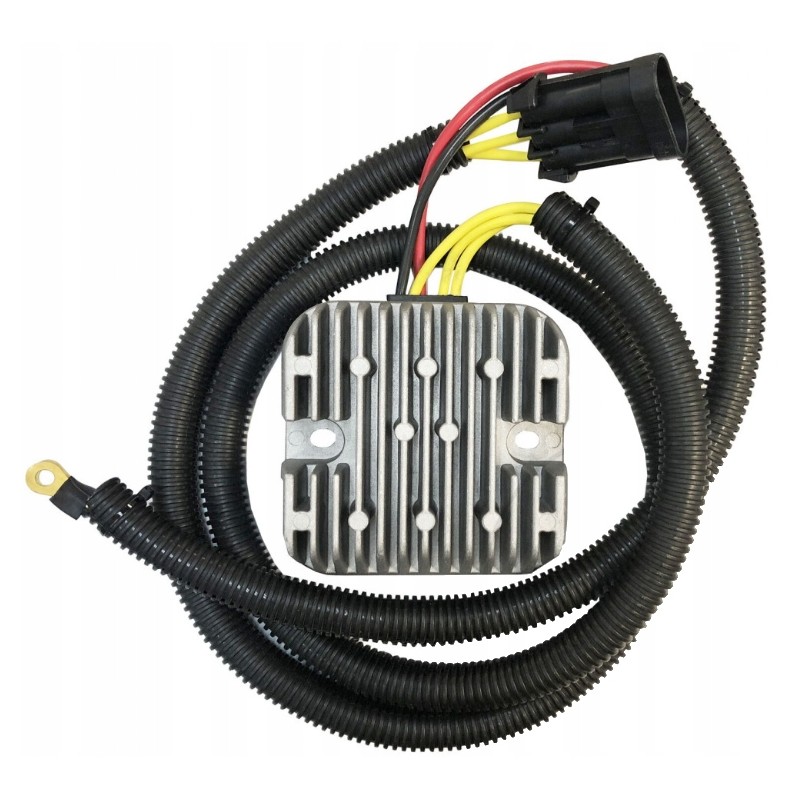

Voltage regulator / rectifier (product code: L700.18.53 )

Regulator with MOSFET technology

For many years, regulators have been using silicon-based semiconductor elements (SCR) to short-circuit excess energy from the generator to ground, thus maintaining relatively constant voltage in the vehicle's electrical system and on the battery. This solution turned out to be suitable for small and medium-power generators in combustion engines. However, the new regulator technology based on MOSFET transistors (Metal-Oxide Semiconductor Field-Effect Transistor) is becoming more and more popular due to better efficiency, lower losses and many other interesting features. Advantages of MOSFET technology:

- 3-PHASE REGULATOR WITH HIGH ENERGY EFFICIENCY

- SYMMETRICAL LOAD OF THE GENERATOR WINDINGS

- OUTPUT CURRENT UP TO 50A

- PRECISE VOLTAGE CONTROL PREVENTS BATTERY FAILURES (especially Li-Ion!)

- LESS RELEASE HEAT TO INCREASE THE LIFE OF THE REGULATOR - MODE STANDBY WHEN THE VEHICLE IS NOT USED WITH MINIMUM POWER CONSUMPTION

Attention!

Installation of modules, coils and voltage regulators by non-specialized mechanical workshops may void the warranty!!!
